Electric vehicle (EV) smart energy management encompasses a broad ecosystem, optimizing charging, efficiency, and performance. This article reviews the ecosystem’s key segments, from electric chargers and power grids to primary EV systems such as battery management systems (BMS), sophisticated machine learning (ML) algorithms, and mobile apps. It also explores the future of EV smart energy management, highlighting evolving vehicle-to-grid (V2G) technologies, dynamic load balancing, and predictive energy routing.
The cornerstone of EV smart energy management
Electric vehicle supply equipment (EVSE) is the cornerstone of EV smart energy management. Many residential chargers (Figure 1) effectively reduce grid load and minimize costs by charging EVs during off-peak times. Some of these chargers can automatically pause during sudden spikes in grid demand and adjust charging rates based on real-time electricity pricing.
Residential chargers also help EV owners more easily participate in cost-saving demand response programs that lower power consumption during peak periods and shift EV charging from the grid to solar panels and battery banks.

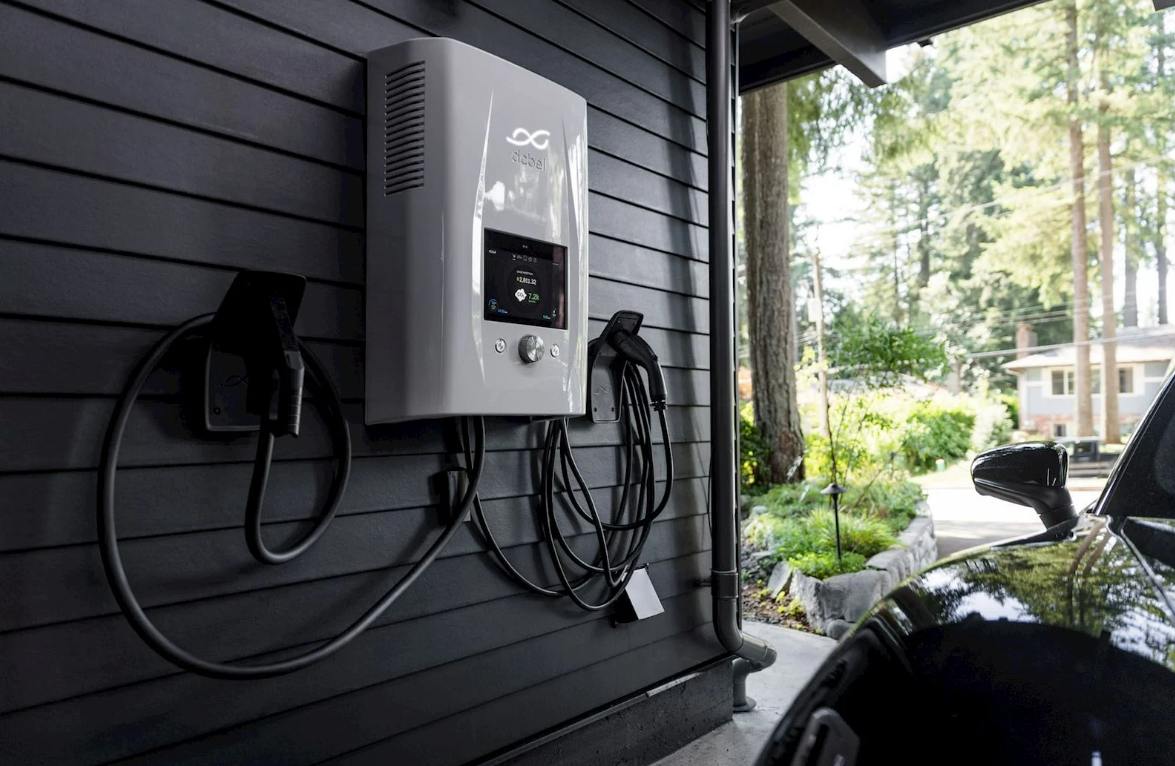

Figure 1. An AC EV charger installed in a home garage. (Image: J.D. Power)
Many public and commercial chargers incorporate similar EV smart energy management capabilities, featuring dynamic load balancing that intelligently adjusts power output to match grid availability. To further reduce grid load and lower costs, public and commercial operators can configure their EV chargers to harness local or on-site renewables such as solar energy during peak production times. Notably, while V2G technologies offer promising benefits by allowing EVs to feed energy back into the grid, these integrations are often complex and have yet to be widely implemented.
Smart energy management is particularly crucial for EV fleet operators (Figure 2). It facilitates efficient, centralized control over charging priorities based on vehicle requirements, battery state of health (SOH), and energy pricing. On-site solar panels, wind turbines, and advanced battery storage systems can further reduce operating costs for high-capacity fleet charging stations.

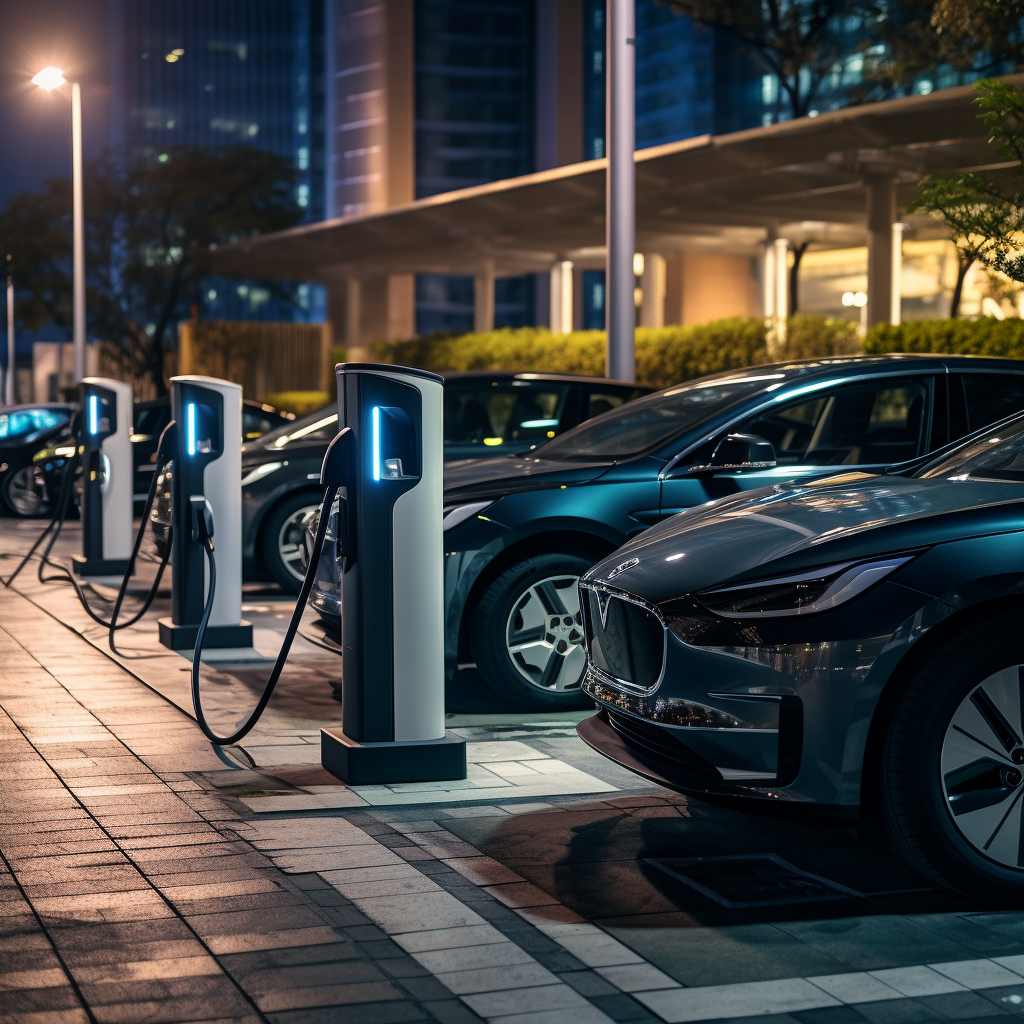

Figure 2. A fleet of EVs connect and draw power at a commercial EV charging station. (Image: EV Engineering)
From BMS to regenerative braking
EV smart energy management is essential in onboard chargers and BMS (Figure 3), ensuring optimal SOH for lithium-ion Li-ion) battery traction packs. These systems monitor critical battery parameters, such as voltage, current, and temperature, alongside a constantly fluctuating state of charge (SOC). EV smart energy management also helps prevent battery thermal runaway and physical degradation caused by excessive heat, overcharging, and frequent rapid charges.
Notably, battery SOC and SOH significantly impact EV acceleration, torque, and driving range.

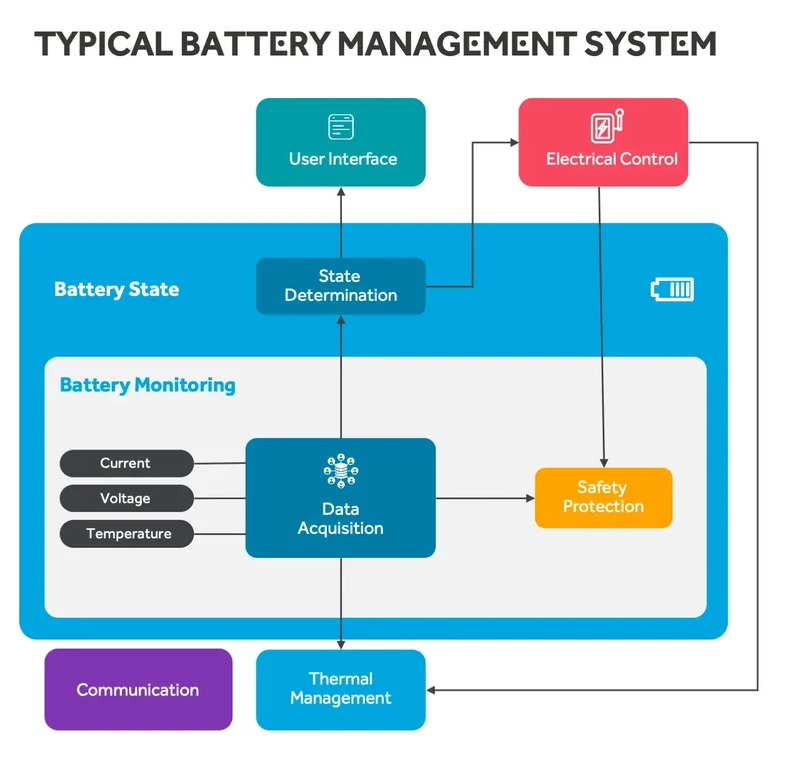

Figure 3. Schematic of an EV’s BMS, depicting the flow from user interface and electrical control to battery state analysis, monitoring, and safety, with integrated communication and thermal management loops for optimized operation. (Image: Cyient)
Embedded in key systems, EV smart energy management features optimize electric motor operations and related drivetrain and powertrain components, including regenerative braking, which captures and converts kinetic energy (typically lost as heat) into electricity for battery traction packs.
Additionally, they help regulate thermal management and in-cabin environmental systems, ensuring comfortable and safe operating temperatures. Driven by increasingly sophisticated ML algorithms and artificial intelligence (AI) capabilities, EV smart energy management features continuously monitor crucial components, analyzing historical data, traffic, and environmental conditions to chart energy-efficient routes while maximizing speed and range.
Understanding the role of mobile apps
Mobile apps from companies like Tesla, Rivian (Figure 4), and Nissan play an important role in the EV smart energy management ecosystem. Featuring an intuitive user interface (UI) and seamless user experience (UX), these apps display SOC and SOH battery status, track range and performance, and help EV drivers efficiently navigate city streets and highways.
EV apps are also used to remotely pre-condition cabin temperatures, schedule charging times, and provide real-time alerts and updates on vehicle health and maintenance.
Figure 4. The Rivian mobile app displays key vehicle statistics such as battery charge, range, and external temperature. (Image: Rivian)
EV apps are also used to remotely pre-condition cabin temperatures, schedule charging times, and provide real-time alerts and updates on vehicle health and maintenance.
The ChargePoint all-in-one app (Figure 5) simplifies EV charging at home and on the road. At home, the app enables drivers to schedule charging sessions when electricity demand and rates are lowest. ChargePoint seamlessly integrates with Alexa, Siri, Apple Watch, and WearOS, allowing drivers to adjust charging settings and receive notifications across devices.
Figure 5. The ChargePoint app interface displays a city map pinpointing available charging stations, helping EV drivers easily find locations based on real-time availability and station capacity. (Image: ChargePoint)
On the road, ChargePoint assists EV drivers in easily locating and filtering charging stations by charging speed, connector type, and distance. Compatible with Apple CarPlay and Android Auto, the app supports multiple payment options, such as credit or debit cards, Apple Pay, Google Pay, and PayPal.
Most EV apps provide detailed analytics and insights into driving patterns, energy use, and charging history. Advanced ML algorithms analyze this data to chart the most energy-efficient routes, ideal charging times, and even predictive maintenance. These AI-driven algorithms continuously learn from driver behaviors, traffic patterns, and environmental conditions, further improving recommendations to optimize EV efficiency, performance, and range.
The future of EV smart energy management
Technologies like V2G, dynamic load balancing, and predictive energy routing are at the forefront of EV smart energy management innovation. For example, bi-directional V2G technology has the potential to seamlessly integrate with local smart power grids, effectively transforming EVs into mobile energy storage units.
Looking ahead, V2G technology is expected to become increasingly prevalent in urban and rural areas, bolstering grid stability and fully harnessing the potential of renewable energy sources.
Advanced V2G technologies will further optimize dynamic load balancing in EV chargers by using predictive analytics to precisely adjust charging rates based on grid capacity and renewable energy availability. Similarly, predictive energy routing, which analyzes historical data alongside real-time weather conditions and traffic patterns, will continue to leverage the rapidly evolving capabilities of AI and ML.
Summary
Optimizing charging, efficiency, and performance, EV smart energy management encompasses an extensive ecosystem. From EVSE and BMS to thermal management systems and regenerative braking, EV smart energy management features are driven by increasingly advanced AI and accessed on sophisticated mobile apps.
References
- Electric Vehicle Smart Energy Management System, Driivz
- How Smart Energy Management Is Driving the EV Revolution, AppInventiv
- Understanding the Impact of Smart Energy Management in EV Landscape, EitBiz
- How Smart Energy Management is Fueling the Future of EVs, BizBrolly
- Leveraging Smart Energy Management Systems for a Smart Future, AmpControl
- Vehicle-to-grid is Technically Feasible, but What’s the Reality?, EV Engineering
