Isolation monitoring is a safety function used in high-voltage electric vehicle (EV) systems to detect unintended electrical paths between energized conductors and the vehicle chassis.

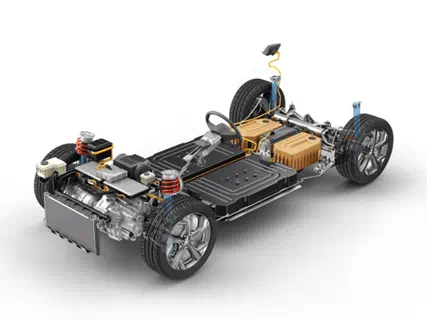

High-level EV powertrain layout illustrating the distributed high-voltage components whose isolation from the vehicle chassis must be continuously monitored. (Image: Allegro MicroSystems)
Electric vehicle high-voltage systems such as battery packs, inverters, and traction motors are intentionally isolated from the vehicle chassis for safety. Unlike a conventional 12 V electrical system, which uses the metal chassis as a ground reference, EV high-voltage systems are designed as ungrounded, galvanically isolated architectures, meaning neither the positive nor negative conductor is bonded to the vehicle body.
Isolation monitoring continuously measures the insulation resistance between the high-voltage system and chassis ground. If resistance drops below a defined safety threshold, the vehicle can warn the driver, limit operation, or disconnect the high-voltage system entirely. Isolation reduces electric shock risk by ensuring that a single insulation fault does not immediately create a hazardous current path through the chassis.
However, insulation is not permanent or infallible. Over time, damage to cables, aging insulation, contamination, moisture ingress, or mechanical stress can create unintended conductive paths between energized high-voltage components and the chassis. When this occurs, leakage current can flow to the vehicle body, creating a ground fault. These faults increase the risk of electric shock, interfere with vehicle operation, and can contribute to secondary failures or fire hazards.
Measurement devices
For over a decade, isolation monitoring in electric vehicles has relied on dedicated insulation monitoring devices (IMDs) that directly measure insulation resistance between the high-voltage system and the vehicle chassis. This remains the primary and most reliable method for detecting ground faults in ungrounded EV architectures.
Most IMDs inject a controlled test signal into the high-voltage bus and evaluate the resulting leakage current through the chassis to calculate effective insulation resistance. Early EV implementations adapted industrial insulation monitors, which were relatively large, standalone units. Automotive grade designs soon followed, offering smaller, faster devices suitable for embedded use.
Modern IMDs typically use resistor networks and control electronics to evaluate the voltage relationship between the positive and negative high-voltage rails and chassis ground. A change in this relationship indicates insulation degradation or a fault condition.
Example of an automotive-grade insulation monitoring device used to measure insulation resistance between a high-voltage system and the vehicle chassis in ungrounded EV architectures. Modern designs support continuous monitoring and compensate for parasitic capacitance in higher-voltage systems. (Image: Sensata)
Despite advances in vehicle electronics, there are few practical alternatives to direct insulation resistance measurement, and sensor based IMDs remain the backbone of EV isolation monitoring, providing continuous and quantitative assessment of high-voltage insulation status.
Higher-voltage architectures
The transition from approximately 400 to 800-V systems, and to higher voltage EV architectures, has increased the stress placed on isolation monitoring systems without changing the fundamental measurement approach. Higher pack voltages reduce tolerance for insulation degradation and increase electrical stress on monitoring circuits, requiring higher voltage ratings and more robust electrical design.
In 800-V systems, isolation monitoring components must withstand significantly higher voltages than the nominal pack voltage, often requiring ratings of 1500 V or greater to maintain adequate safety margins. This has driven the adoption of higher voltage solid state isolation components and improved circuit layouts with greater creepage and clearance distances.
Higher voltage architectures also increase parasitic capacitance between the high-voltage system and the vehicle chassis. Larger battery packs, longer cable runs, and fast switching power electronics, particularly those using silicon-carbide devices, introduce higher dv/dt (rates of voltage change over time) and increased ac leakage currents. These effects can distort insulation resistance measurements and increase the risk of false fault detection.
Modern isolation monitoring systems address this by compensating for system capacitance and electrical noise while maintaining continuous monitoring during driving and charging.
The move to 800-V architectures has not reduced the importance of isolation monitoring. Instead, it has reinforced the need for more reliable hardware and improved measurement stability to ensure accurate fault detection under higher electrical stress.
Advances in isolation monitoring
While the core measurement principle remains unchanged, modern isolation monitoring devices incorporate improved signal injection methods, enhanced noise immunity, and advanced digital filtering. These improvements allow continuous monitoring during inverter operation, rapid voltage transitions, and charging events.
Some systems evaluate insulation behavior over time to improve fault discrimination in electrically noisy environments. Trend analysis is used to stabilize detection logic and distinguish gradual insulation degradation from transient effects, while threshold based decisions remain the basis for safety actions.
In higher power systems, parasitic capacitance between high-voltage components and the chassis becomes more significant. Excessive capacitance can contribute to AC leakage currents during fast switching and high power charging. Modern isolation monitors may account for system capacitance as part of their evaluation to maintain accurate fault detection without nuisance trips.
Implications for 800-V systems
Higher voltage platforms require isolation monitoring circuits capable of safely interfacing with elevated voltage levels while maintaining adequate creepage, clearance, and long term reliability. Monitoring circuits typically use high-voltage switching elements to selectively connect sensing networks to the traction bus.
Compared to older relay technologies, modern solid state switching devices offer higher voltage ratings and improved reliability, enabling safe operation in systems that can exceed 900 V at full charge. Isolation monitoring components are commonly rated well above nominal pack voltage to provide appropriate safety margins and long term robustness.
Integration into vehicle electronics
Another notable trend is the integration of isolation monitoring functionality into existing vehicle electronics. In early EV designs, isolation monitoring was often implemented as a standalone module. Today, the function is increasingly embedded within battery management systems or power electronics assemblies.
Some battery management system (BMS) platforms incorporate isolation measurement alongside cell voltage, current, and temperature sensing, allowing direct correlation between insulation status and operating conditions. Power electronics units may also include internal ground fault detection functions, although the underlying measurement principles remain consistent with traditional isolation monitors.

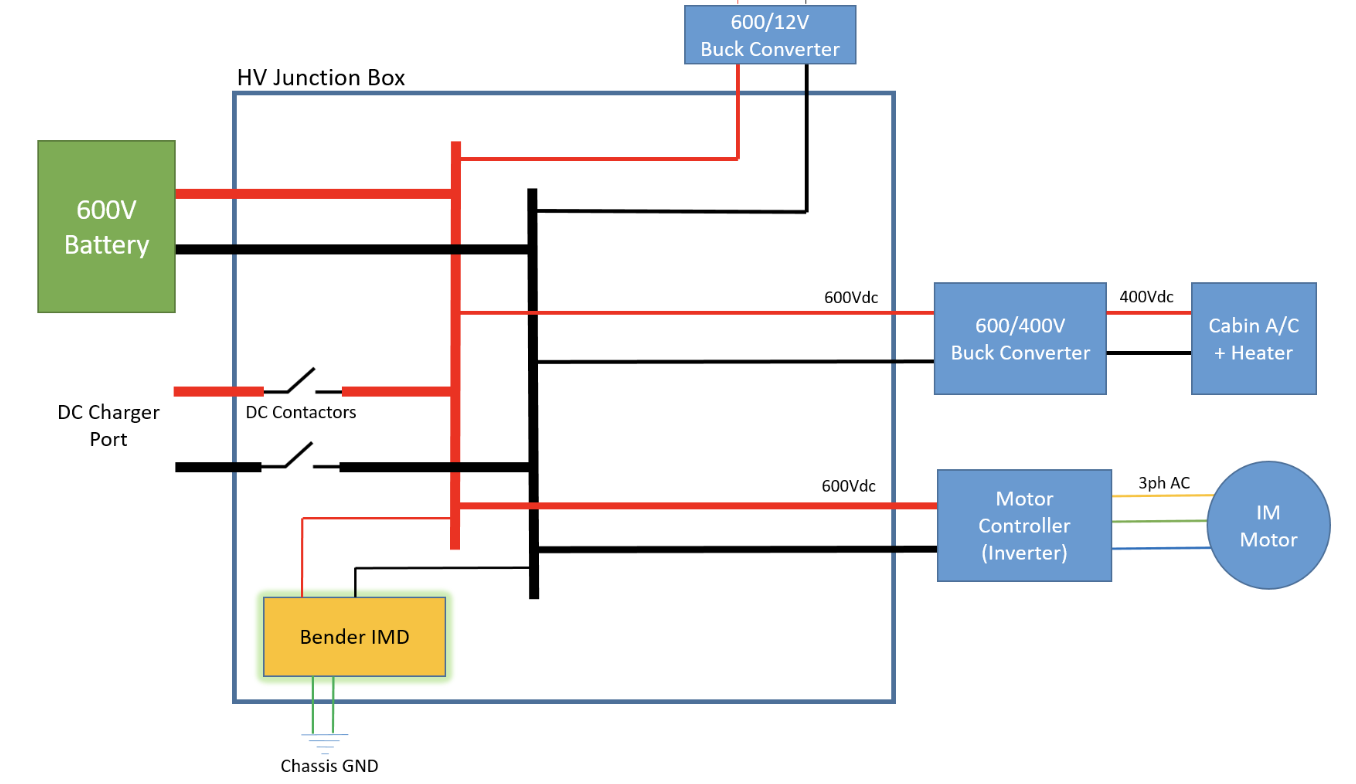

Simplified EV high-voltage architecture showing integration of an insulation monitoring device with the HV bus and chassis ground. (Image: Electrical Engineering)
Integration reduces component count and wiring complexity but does not eliminate the need for dedicated sensing circuits. Whether standalone or embedded, isolation monitoring must meet the same safety, diagnostic, and response requirements.
Regulatory requirements
Isolation monitoring is mandated by global electric vehicle safety standards, which define minimum insulation resistance thresholds, monitoring conditions, and required vehicle responses. When insulation resistance falls below specified limits, the vehicle must provide warnings, restrict operation, or de energize the high-voltage system depending on severity and operating state.
Modern best practices treat isolation monitoring as an always active safety function whenever the high-voltage system is energized, including during charging and stationary conditions. Isolation monitors are expected to detect faults within defined time windows and trigger protective actions, such as opening high-voltage contactors or transitioning the vehicle into a safe state.
Self test capabilities are commonly included to detect failures within the monitoring circuitry itself, and redundant signaling paths are often used to ensure that critical isolation faults result in immediate system level responses. Coordination between vehicle isolation monitoring and charging infrastructure is also essential, as both sides must verify insulation status before energizing high-voltage connections.
Summary
Sensor based isolation monitoring remains the cornerstone of high-voltage safety in electric vehicles. Continuous verification of insulation integrity is essential for detecting one of the most critical electrical faults in an EV.
As platforms evolve toward higher voltages and more demanding power electronics, isolation monitoring has advanced through improved hardware, signal processing, system integration, and clearly defined protective responses. While implementation details continue to evolve, the fundamental requirement remains unchanged. Loss of isolation must be detected quickly and acted upon decisively to ensure occupant and service safety.
