Isolators are essential in electric vehicles (EVs), facilitating high-voltage battery operations and safeguarding sensitive control electronics. This article discusses the crucial functions of EV isolators and explores their impact on vehicle efficiency, performance, and safety.
Understanding isolation requirements in EVs
Many EV designs feature closely packed electronic systems with limited space between components. Notably, placing high-power circuits near sensitive control electronics heightens the risk of signal line cross-talk, electromagnetic interference, and thermal runaway. Moreover, power spikes can cause system failure and even dangerous electric shocks.

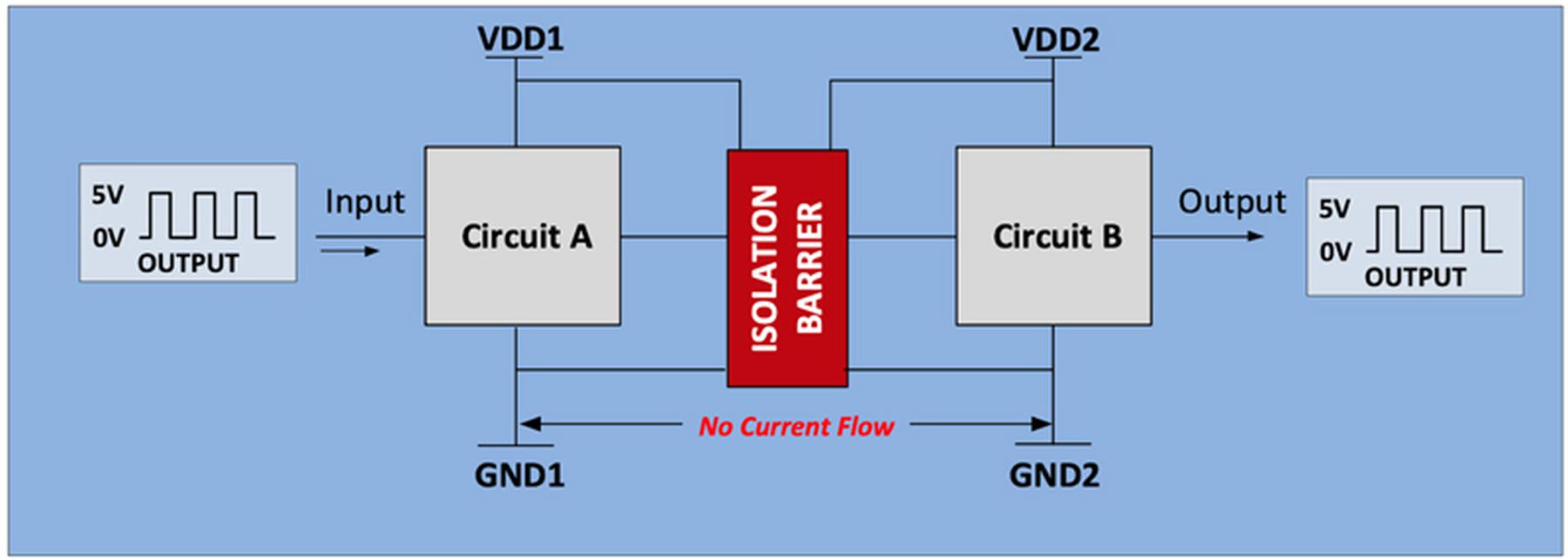

Figure 1. Schematic representation of an isolated electrical system showcasing circuit A and circuit B separated by an isolation barrier to prevent current flow, highlighting dual power supply inputs and outputs. (Image: Power Systems Design)
Isolators mitigate these risks by creating an electrical barrier between high-power and low-power circuits. This barrier enforces physical and electrical separation — preventing direct current flow between different system grounds. However, the barrier can still allow signal and power transfer through magnetic or capacitive coupling.
In the context of EVs, isolators:
- Suppress power spikes: Shields vulnerable electronic systems from sudden surges that could potentially cause thermal runaway, failure, and even loss of life.
- Interrupt ground loops: Stops electronic noise from compromising signal integrity and system operations.
- Mitigate harmonic distortion: Blocks electrical harmonics that distort power system waveforms and degrade performance.
- Prevent electromagnetic interference: Facilitates stable control circuit operations by filtering out high-frequency electromagnetic interference.
- Ensure stable sensor output: Keeps high-voltage power activity from precision measurement circuits.
- Regulate safe energy transfer: Enforces electrical separation, bolstering safety and reliability across all systems.
Optimizing battery management systems
EV battery management systems (BMS) seamlessly integrate with home or public chargers to manage energy flow safely and efficiently. Isolators within the BMS are fundamental to this process, controlling charging and discharging to mitigate electrical interference and thermal runaway. Specifically, isolators ensure the accuracy of cell condition monitoring –dampening power fluctuations and protecting against data corruption.
BMS isolators separate high-voltage EV batteries from the low-voltage electronics that manage charging protocols and data analytics. Constructed from materials such as polyimide or ceramic, isolators withstand electrical stress, preventing high-voltage intrusion, and ensuring reliable transmission of control and monitoring signals.
Regulating high-voltage current
Isolators in switch mode power converters, including DC/DC converters, help regulate voltage and current for critical EV systems such as propulsion, advanced driver-assistance systems (ADAS), and regenerative braking. Converters are especially crucial for the latter, as they convert raw kinetic energy into usable electrical power.
Additionally, DC/DC converters step down high-voltage direct current from the EV’s main battery, delivering a safe and stable power supply to climate control, lighting, and infotainment systems. Moreover, EV DC/DC converters and their embedded isolators support essential safety functions, from automated braking and lane-keeping to collision warnings and driver monitoring.
Maintaining signal and system integrity
EV communication systems, including the controller area network (CAN), rely on isolators to separate diagnostic tools from EV communication and power management networks. Moreover, isolators localize fault conditions, ensuring safe vehicle operations and implementing shutdowns during electrical system failure. Lastly, isolators enable predictive maintenance and rapid fault detection, boosting EV components’ overall reliability and service life.
Figure 2. Illustration of an electric vehicle driving on a city street. (Image: EVEngineeringOnline)
Accelerating EV drivetrain efficiency
Central to EV drivetrains, traction inverters facilitate safe and efficient motor operation by converting high-voltage battery DC to motor-compatible AC. Traction inverter isolators protect lower-voltage control systems from high-voltage DC and transient surges, ensuring optimal acceleration, speed, and energy recovery.
Traction inverter isolators minimize electromagnetic interference, delivering consistent performance under high load demands and temperature extremes. Additionally, isolators facilitate precise control of inverter switching frequencies — effectively synchronizing motor power demands with battery output.
Enforcing safety measures in high-voltage interlock (HVIL) systems
High-voltage interlock systems depend on isolators to enforce circuit safety verification. Isolators act as gatekeepers, preventing damage and electric shocks by verifying EV connectors are fully and correctly engaged before initiating activation. This precaution is critical during high-risk scenarios such as maintenance and post-accident assessments, as exposed high-voltage components pose serious safety hazards.
Summary
EV isolators prevent ground loop noise, electromagnetic interference, and power spikes from damaging sensitive control electronics and harming passengers. By separating high-power and low-power circuits, isolators optimize battery management and regulate voltage while boosting efficiency, performance, and safety.
