A vehicle control unit (VCU) coordinates and manages operations across key electric vehicle (EV) systems. This article reviews primary VCU functions, explores its core physical architecture and protocols, and highlights connectors’ crucial role in linking the VCU with various electronic control units (ECUs). It also discusses best practices for installation and integration.
The fundamentals of EV VCUs
The EV VCU (Figure 1) manages powertrain and drivetrain ECUs, dynamically adjusting operational parameters for motor control units (MCUs), the integrated power unit (IPU), battery management system (BMS), traction control system (TCS), and steering assist system. It optimizes energy distribution and torque management, boosting acceleration, energy efficiency, and vehicle stability. Additionally, the VCU maximizes regenerative braking to recharge the battery during deceleration — and processes data from the accelerator and brake sensors to fine-tune electric motor power output.
Figure 1. An exterior view of an EV ECU, highlighting its robust housing, connector ports, and mounting points. (Image: Electra EV)
The VCU also coordinates with advanced driver-assistance systems (ADAS), supporting cameras, sensors, and additional components that enable adaptive cruise control, lane-keeping assistance, emergency braking, and automatic parking. Lastly, the EV VCU manages the onboard charger (OBC), dc-to-dc converter, instrument cluster (IC), and telemetry control unit (TCU).
The VCU maintains vehicle-wide communication through Controller Area Networks (CAN bus), Local Interconnect Networks (LINs), and Ethernet. These protocols facilitate rapid data collection and analysis from different ECUs, monitoring motor temperature, battery health, state of charge (SOC), and vehicle efficiency metrics. The VCU also logs and stores diagnostic data, sending system status alerts and safety warnings to driver displays and mobile apps.
If anomalies are detected, the VCU can activate safe (limp) mode, temporarily restricting electric motor power output, rotations per minute (RPMs), and regenerative braking.
Core components and protocols
Powered by a microcontroller unit (MCU) or central processing unit (CPU), the VCU (Figure 2) manages vehicle subsystems by interpreting and responding to sensor data.

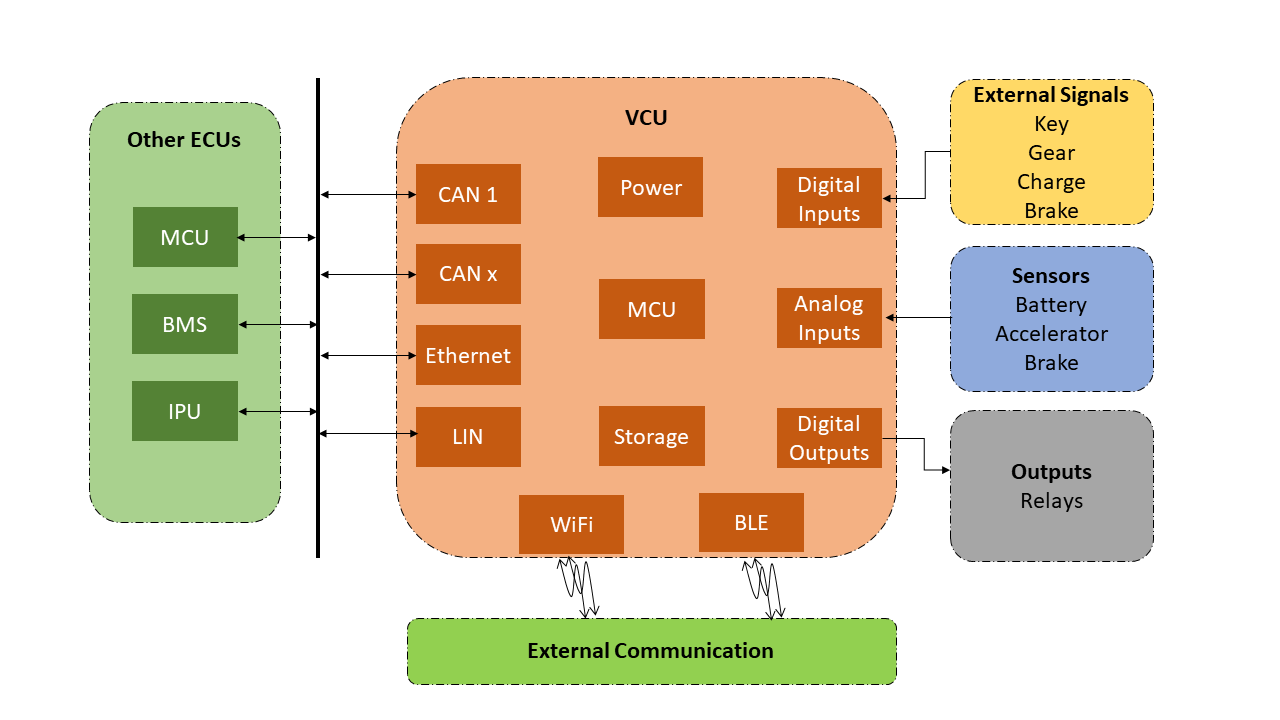

Figure 2. A schematic diagram of an EV VCU, integrating with different ECUs. The VCU interfaces with internal subsystems and external signals, managing inputs and outputs across communication protocols and wireless technologies — including Wi-Fi and Bluetooth Low Energy (BLE). (Image: Embien)
The VCU uses analog-to-digital converters (ADCs) to transform inputs such as temperature, voltage, and current into digital data, employing digital-to-analog converters (DACs) to generate precise control signals for actuators. It also reads external signals and controls devices like relays and solenoids through various digital I/Os. Moreover, the VCU efficiently loads, saves, and retrieves data using RAM, ROM, and flash memory.
EV VCU connectors: The crucial link
Connectors link the VCU to various ECUs, ensuring reliable transmission of electrical signals and power. Designed for powertrain and drivetrain subsystems, connectors operate within temperatures of -40° to 257° F and handle voltages up to 1000V, maintaining functionality under extreme environmental stress. High-current VCU connectors in these components typically incorporate materials such as reinforced plastics or advanced alloys to improve thermal and mechanical stability. In contrast, infotainment and other in-cabin systems connectors may rely on simpler designs and materials.
Nevertheless, most VCU connectors feature advanced shielding and implement grounding techniques to maintain signal integrity and reduce electrical interference in dense electromagnetic environments. Efficient wire routing and connector placement further minimize electromagnetic interference. Compliance with automotive industry standards such as Automotive Safety Integrity Level (ASIL), US Council for Automotive Research (USCAR), LV214, and ISO 16750 ensures these connectors can withstand thermal expansion, vibrations, moisture, and corrosion.

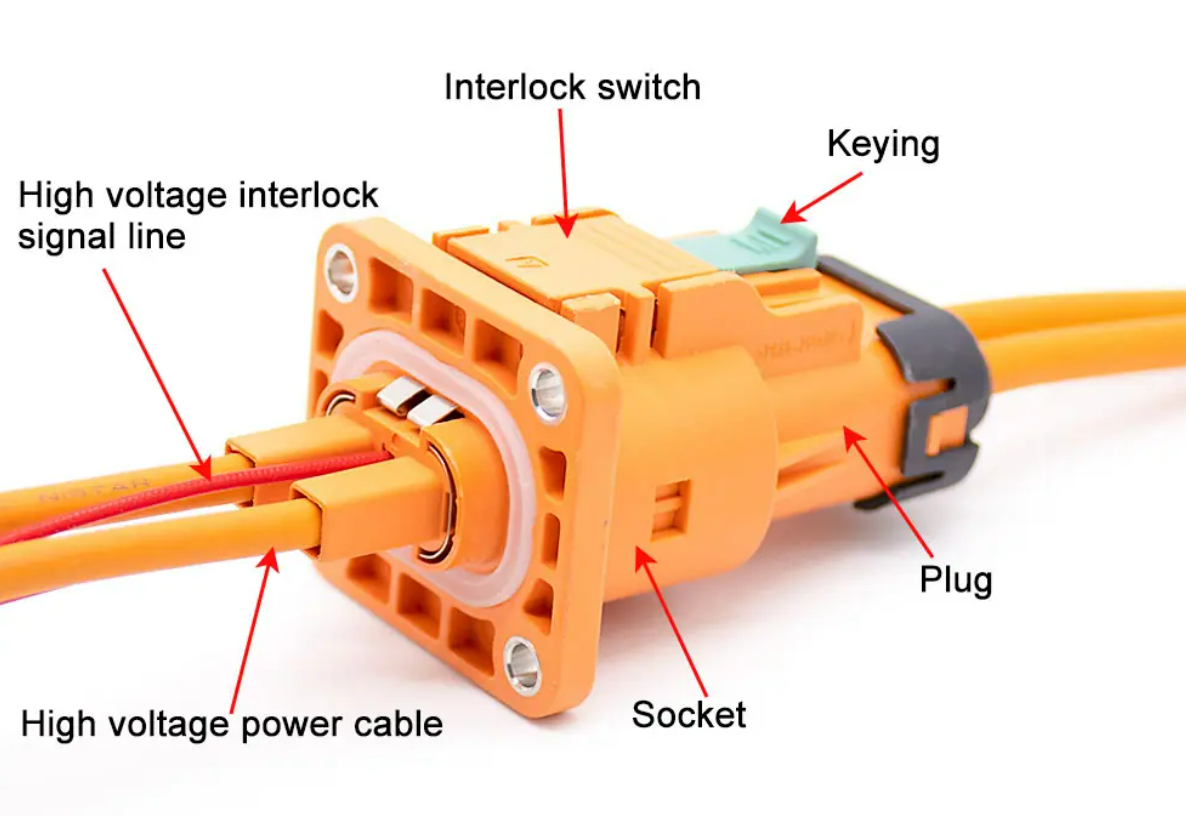

Figure 3. A detailed view of an HVIL connector, showcasing its key components: high voltage power cable, interlock switch, and signal line. (Image: Renhotec)
High-voltage interlock loop (HVIL) connectors (Figure 3) provide a crucial safety mechanism that immediately disables EV high-voltage circuits in hazardous conditions or during emergencies. These connectors are integrated into monitoring systems that relay the status of HVIL signals to the VCU or BMS.
If an abrupt disconnection or anomaly is detected at any point — such as between the motor and MCU or between the compressor and HVAC system — the affected HVIL detection point sends a signal to the VCU. The VCU then instructs the BMS to deactivate or disconnect the power, ensuring the safety of drivers and passengers.
Optimizing VCU and connector placement
Although VCU installation varies by vehicle, the unit is typically positioned under the passenger compartment, parallel to the BMS. This layout facilitates streamlined connections and efficient management of both systems.

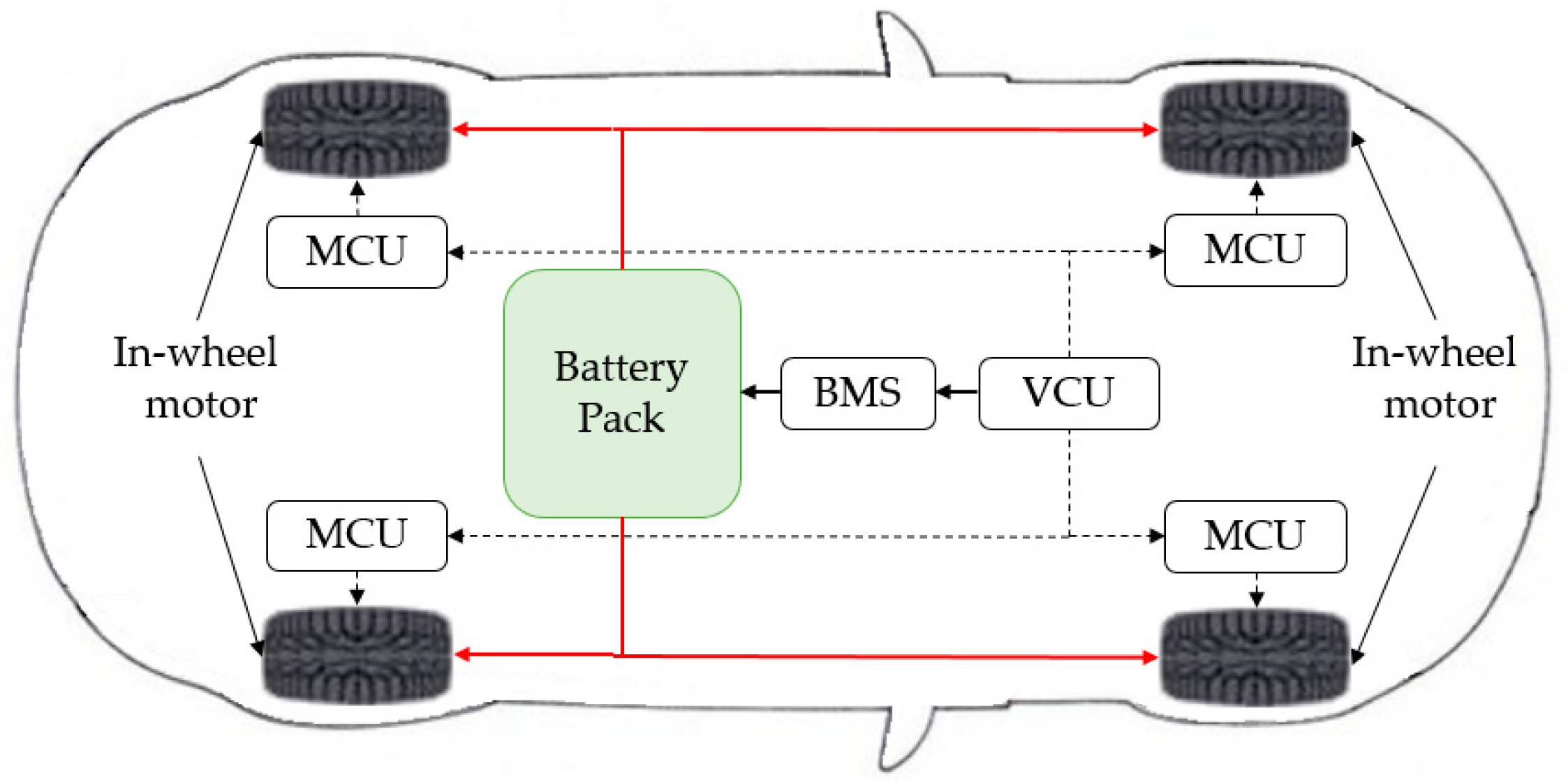

Figure 4. A diagram of an EV’s layout, showing the integration of in-wheel motors with their respective MCUs, linked to a central battery pack managed by the BMS and VCU. (Image: MDPI)
Installation guidelines are straightforward: automotive factory technicians securely mount the VCU at all four corners and orient connectors downward to protect against moisture and simplify maintenance or repairs. Crucially, VCU connector designs must precisely match the specific operating conditions and functions of their respective ECUs to ensure optimal performance and reliability.
Summary
The EV VCU coordinates operations across all major automotive systems, from the IPU, BMS, and OBC to the MCU, TCS, and regenerative braking mechanisms. Connectors link the VCU to different ECUs, ensuring reliable and safe transmission of electrical signals and power. Most VCU connectors incorporate advanced shielding and grounding to maintain signal integrity and reduce electrical interference in dense electromagnetic environments.
Notably, HVIL connectors are specifically designed to immediately disable EV high-voltage circuits during emergencies.
