What is the role of engineering coatings in EVs?

By |

Electric vehicle (EV) manufacturers use specialized coatings to provide electromagnetic interference (EMI) shielding, environmental protection, and controlled thermal pathways across high-voltage electronics, battery packs, and cooling systems.

Over the past decade, engineering coatings have evolved from generic automotive paints and varnishes into application-specific conductive, dielectric, and thermally engineered materials designed for 800 to 1000-V battery architectures and fast-switching power electronics.

This article explains how engineering coatings support EMI shielding in battery enclosures and power electronics, protect components from moisture and corrosion, and enable thermal management through controlled heat transfer and fire resistance. It also reviews the testing protocols used to validate coating adhesion and long-term durability under combined electrical, thermal, and mechanical stress.

EMI/RFI shielding through conductive and dielectric coatings

EV platforms increasingly use coatings on plastic and composite housings to provide electromagnetic shielding, reducing dependence on heavy metal enclosures. Metal-filled paints containing silver, copper, nickel, or carbon are applied to plastic or composite housings used in inverters, onboard chargers, and battery enclosures to deliver board-level and housing-level EMI shielding.

As shown in Figure 1, these coatings convert non-conductive substrates into effective EMI shields while maintaining shielding effectiveness across broad frequency ranges and supporting lightweight, complex geometries.

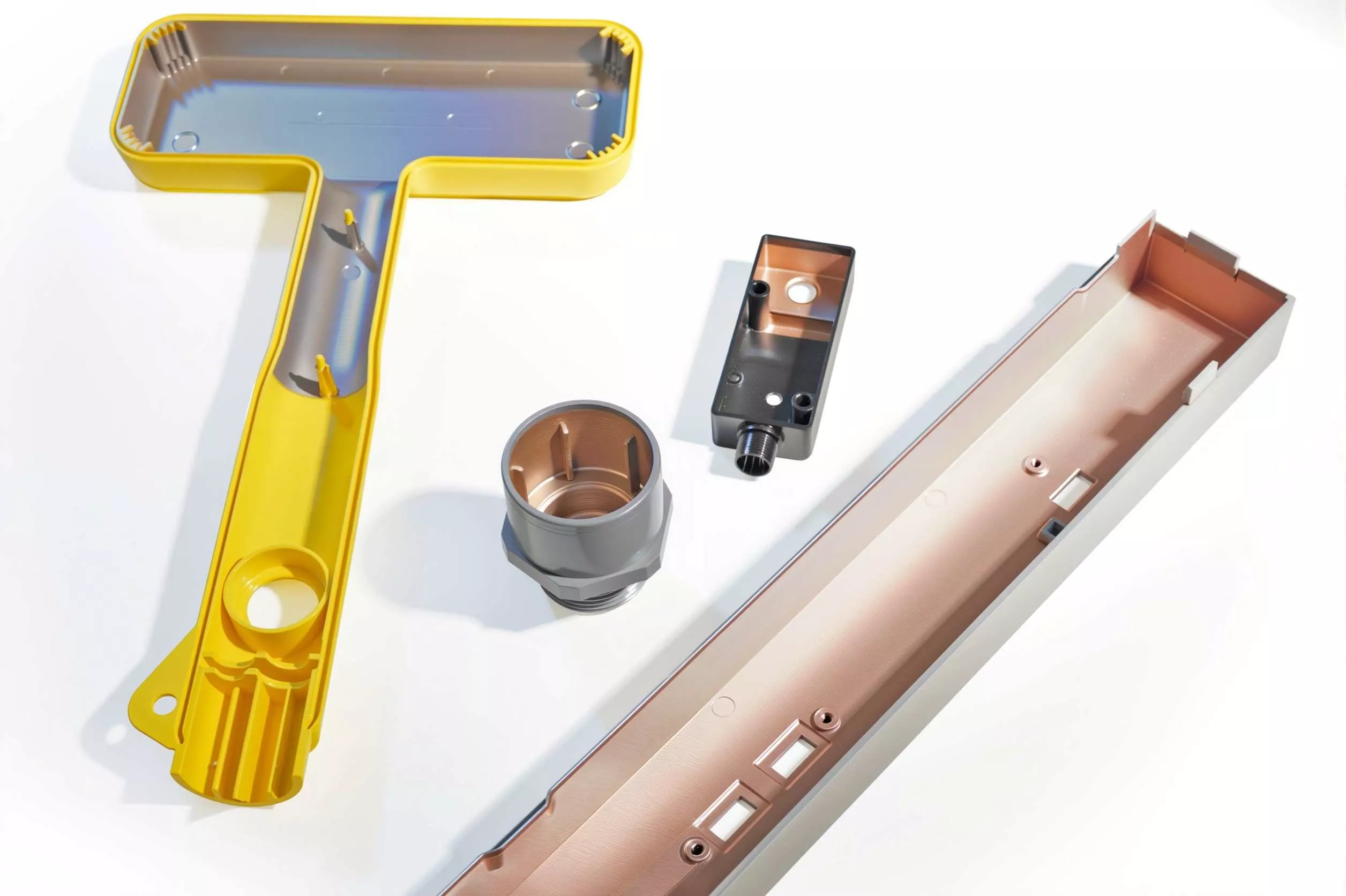

Figure 1. Conductive coatings applied to plastic and composite EV housings provide effective EMI shielding without the weight penalties of metal enclosures, enabling flexible form factors and lightweight power electronics packaging. (Image: Mueller Coatings)

Within battery packs, conductive coatings applied to interior housing surfaces limit EMI ingress and egress, protecting battery management systems (BMS) and high-speed communication links from switching noise generated by silicon carbide (SiC) and gallium nitride (GaN) inverters.

Selective electroplating processes deposit ultra-thin conductive metal layers only where shielding is required, delivering high conductivity with minimal thickness and mass. This targeted metallization maintains creepage distances and reduces parasitic capacitance in sensitive electrical layouts. Battery-specific EMI coatings often use metallic or hybrid polymer-ceramic formulations that combine electrical conductivity with mechanical stability at elevated temperatures, in some cases approaching 600° C, to withstand thermal events.

Manufacturers commonly layer these systems, using conductive inner surfaces for EMI shielding and outer dielectric or corrosion-resistant topcoats for environmental and mechanical protection.

Environmental protection and corrosion resistance

Conformal and structural coatings protect EV electronics and hardware from moisture, salts, and chemicals while maintaining dielectric integrity under elevated voltage and tight spacing.

As shown in Figure 2, acrylic, silicone, urethane, and Parylene coatings are widely used on printed circuit boards (PCBs) in power inverters, battery management systems, and onboard chargers. These thin films act as barriers against moisture and ionic contamination, reducing the risk of electrolytic corrosion and dendrite growth between conductors under electrical bias.

Figure 2. Conformal coatings such as acrylic, silicone, urethane, and Parylene protect EV power electronics by blocking moisture and ionic contamination. (Image: AdvancedCoating)

Modern light-cured and dual-cure formulations provide high dielectric strength that supports reduced creepage and clearance requirements while maintaining resistance to rapid thermal cycling, high humidity, salt spray, and common automotive fluids.

Powder coatings applied to battery trays, frames, cooling plates, and busbar supports combine dielectric insulation with corrosion and chemical resistance. These formulations optimize edge coverage on sharp geometries typical of stamped battery enclosures and for stable adhesion to aluminum and mixed-metal structures.

Within battery modules, dielectric coatings insulate high-voltage components, prevent internal shorting, and mitigate corrosion in 800 to 1000-V systems. Ceramic-polymer hybrid formulations achieve dielectric strengths up to 42 kV/mm while maintaining thermal conductivity for heat removal, enabling thinner insulation layers in high-voltage architectures. Metal pretreatments and conversion coatings applied to aluminum housings further reduce corrosion, improving pack durability and long-term reliability.

Cooling plates, tubes, and manifolds exposed to conductive coolants, temperature cycling, and external road contaminants rely on coatings that provide internal corrosion protection alongside resistance to stone impact and salt exposure.

Thermal management and heat transfer control

As shown in Figure 3, coatings function as active elements within the thermal management stack, impacting heat conduction, interface resistance, and fire behavior around power electronics and battery systems.

Figure 3. Dielectric and fire-resistant coatings applied to EV battery housings and lids function as active thermal management elements, controlling heat conduction, maintaining electrical isolation, and delaying flame propagation during thermal events. (Image: EV Engineering)

Battery housings, lids, and cooling plates use dielectric coatings with elevated thermal conductivity to transfer heat while maintaining high breakdown strength, often reaching tens of kV/mm. These formulations incorporate ceramic fillers such as aluminum oxide or boron nitride within polymer matrices to create anisotropic heat paths that conduct heat away from cells while limiting lateral spread.

Coating architectures are engineered with more thermally conductive surfaces in contact with cooling plates, while side surfaces remain electrically insulating. This directional design steers heat downward into cooling plates and reduces lateral propagation between adjacent cells. Testing indicates these architectures increase downward heat flow while reducing radial transfer, supporting both thermal performance and propagation safety.

Within battery modules and power electronics, coatings and adhesive films also function as thermal interface layers. By reducing contact resistance between cells, busbars, and cooling plates, these materials improve heat transfer while maintaining dielectric isolation. Emerging formulations bridge conventional thermal interface materials and protective coatings, enabling sprayed or bonded layers that simplify assembly compared with discrete pads.

Beyond steady-state thermal management, coatings also play a critical role during abnormal and fault conditions. Fire-resistant coatings applied to battery lids and enclosures delay burn-through and limit flame spread during thermal runaway events.

Some formulations swell or char under high heat, forming insulating layers that reduce heat flux to adjacent modules. Advanced fire barrier coatings maintain thermal integrity at temperatures approaching 1,400° C for short-term flame exposure and provide extended protection at 700° C, supporting aluminum, composite, and plastic substrates.

In immersion-cooled architectures, where dielectric fluids contact cells directly, coated surfaces must remain chemically compatible and dimensionally stable over the vehicle lifetime. These requirements drive formulations with low swelling, minimal extractables, and stable dielectric properties.

Testing and validation protocols

As shown in Figure 4, automotive manufacturers validate adhesion and long-term durability of EV coatings using standardized tests combined with accelerated environmental, electrical, and thermal stresses that reflect real operating conditions.

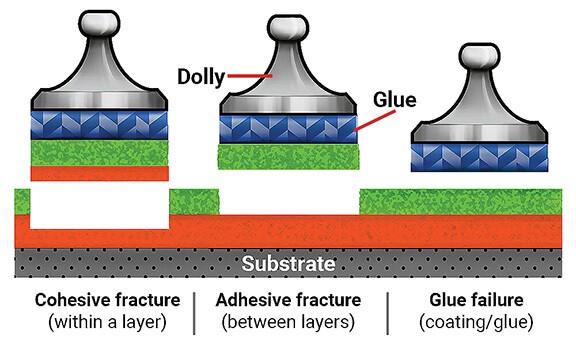

Figure 4. Standardized adhesion testing identifies cohesive fractures within the coating, adhesive fracture between layers, and coating or adhesive failure at the substrate interface under applied mechanical stress. (Image: De Felsko)

Cross-hatch and X-cut tape adhesion tests score patterned cuts through the coating to the substrate, apply standardized tape, and visually rate the percentage of coating removal. Engineers typically repeat these tests after thermal cycling, humidity exposure, or corrosion aging to quantify adhesion degradation.

Additional tests include:

Summary

Advanced coating technologies used in EV platforms integrate electromagnetic shielding, environmental protection, and thermal management within a single materials stack. Conductive coatings provide enclosure-level EMI shielding, while dielectric formulations deliver high-voltage insulation and corrosion resistance. Thermally conductive coatings manage heat transfer and support fire safety, often operating in conjunction with thermal interface materials to control interface resistance.

Comprehensive validation protocols confirm coating adhesion and long-term durability under combined electrical, thermal, and mechanical stresses representative of EV duty cycles.
