A matrix converter is a type of direct, variable ac-to-ac converter without an intermediate dc-link stage. The topology can deliver high-power densities, bidirectional power flow, and precise control in a compact size, making it suited for electric vehicles (particularly traction inverters and regenerative braking systems), industrial motor drives, aerospace, marine applications, as well as renewable energy systems.
When higher power levels are needed, cycloconverters or matrix multi-level converters can be used (Figure 1). All three are single-stage ac-to-ac converters. Both types of matrix converters use bidirectional switches, while cycloconverters use two sets of unidirectional switches, like thyristors, one for the positive half-cycles and another for the negative half-cycles.
Figure 1. High-power converter topologies classification tree showing matrix converters on the left. (Image: MDPI energies)
By controlling the conduction periods of the bidirectional switches, a matrix converter can deliver various output voltages, frequencies, and phases. Properly designed, they can deliver higher power densities and improved reliability compared with dc-link topologies. Their primary disadvantage is that they require more power switches and complex control schemes.
Applications
In general, matrix converters are used where high-quality power is needed. They can produce sinusoidal input and output currents with little harmonics and produce little electromagnetic interference.
Specific examples include:
- Electric vehicles (EVs) benefit from the bidirectional power handling of matrix converters, enabling regenerative braking, variable frequency/variable voltage motor control, and more compact traction-inverter architectures.
- In EV charging stations, they eliminate the need for the bulky and expensive dc-link capacitor required by other topologies, potentially improving power density and system reliability.
- Industrial automation systems can realize improved energy efficiency and more precise speed and direction control.
- Aerospace and marine installations, including offshore platforms, benefit from the compact, light-weight solutions enabled by matrix converters.
- Matrix converters are also being explored for future 800-V and 1000-V EV drivetrains, where removing the dc-link capacitor can reduce thermal load, inverter size, and overall system mass.
- Green energy systems where matrix converters provide high-quality grid-interactive power interfaces for connecting solar panels and wind turbines to the electric grid.
How it works
The bidirectional power switches are the primary differentiator of matrix converters. They usually consist of IGBTs or MOSFETs with antiparallel diodes. A three-phase to three-phase matrix converter requires nine bidirectional switches (Figure 2).

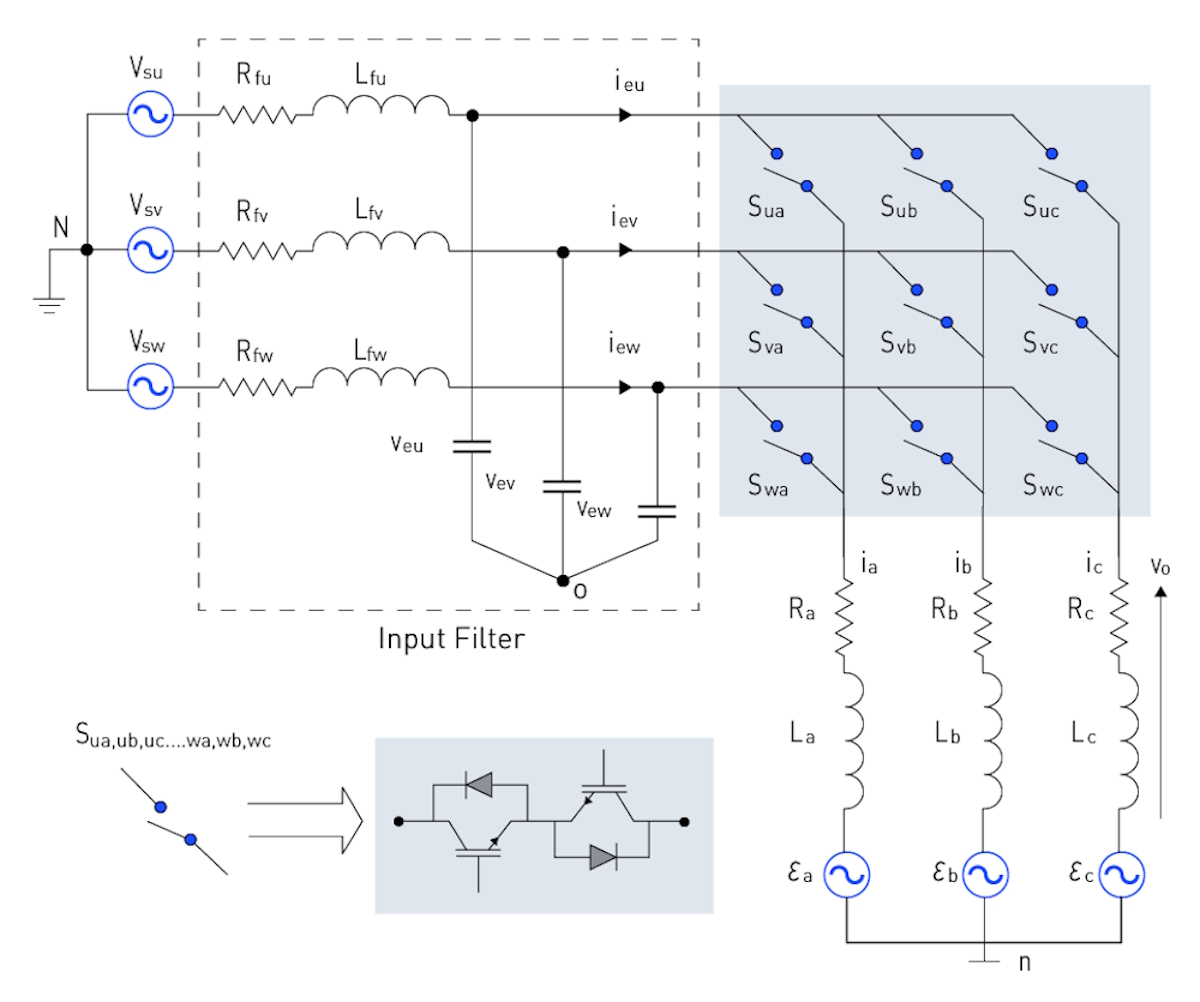

Figure 2. A basic three-phase to three-phase matrix converter topology, showing the structure of the bidirectional switches in the lower left-hand corner. (Image: Monolithic Power Systems)
By eliminating the dc-link capacitor, a matrix topology results in fewer and smaller components and delivers higher power density and higher reliability. This compactness is particularly attractive for EV traction inverters, where volume, mass, and thermal constraints directly affect driving range and vehicle packaging.
The voltage, frequency, and phase shift of the output are determined by the duty cycle and timing of the power switching.
Design challenges
The significant performance benefits of matrix converters come with significant design complexities compared with other high-power topologies. The primary design challenges relate to the need for complex control strategies, sensitive commutation processes, and protection and fault tolerance.
Building and controlling the bidirectional switches takes significant effort. The bidirectional switches require isolated gate drivers that increase design complexity. The control algorithm must precisely synchronize the switching of the power semiconductor devices; otherwise, a catastrophic fault can occur, such as a short circuit on the input or an open circuit on the output.
Precision control is also necessary to deliver the variable frequency, voltage, and phase relationships that are possible with a matrix converter. They often use space vector modulation (SVM) techniques that are more complex and computationally intensive compared with conventional pulse-width modulation (PWM).
Matrix converters lack a simple freewheeling path, adding complexity. These converters need complex current- or voltage-based multi-step commutation algorithms, which can increase switching losses as well as increase system complexity. Commutation is sensitive to noise, delays, and disturbances in the input voltage, which can lead to current spikes or commutation failures.
The lack of a DC-link capacitor complicates protection strategies in matrix converters. To absorb energy from inductive loads and mitigate voltage spikes, clamping circuits consisting of a diode bridge and a capacitor are required.
The control strategy must be able to accommodate input voltage imbalances or sags that can reduce output quality. Should a control or switching error occur, turning off all the switches when driving an inductive load will cause a damaging overvoltage surge.
Summary
A matrix converter is a direct, variable AC-to-AC converter without an intermediate DC-link stage. It can deliver variable voltage, frequency, and phasing. The lack of a DC-link capacitor results in a compact and lower-cost solution but also introduces challenges when designing control and protection circuitry. These converters often rely on complex SVM control techniques.
For EVs, their compactness, bidirectional power flow, and efficiency gains make them a promising option for future traction inverters and regenerative braking architectures, as well as high-power onboard charging systems.
References
- A Review of Matrix Converters in Motor Drive Applications, MDPI Energies
- Advanced Topics in AC/AC Converters, Monolithic Power Systems
- Design of the Input and Output Filter for a Matrix Converter Using Evolutionary Techniques, MDPI Applied Sciences
- Fundamentals of Matrix Converter, University of Bologna
- Modulation Methods for Direct and Indirect Matrix Converters: A Review, MDPI energies
- Review, Challenges and Potential of AC/AC Matrix Converters CMC, MMMC, and M3C, MDPI energies
- The revolution of matrix converter: moving towards decarbonization technology, IOP Conference Series: Earth and Environmental Science
