Testing EV subsystems across multiple voltage domains

By |

Electric vehicle (EV) architectures span multiple voltage domains, combining 400 or 800 V traction systems with 48-V auxiliary networks and 12-V electronics. The mix of voltage levels increases the complexity of testing traction inverters, dc-dc converters, battery management systems (BMS), and auxiliary circuits.

This article explains how engineers meet cross-domain voltage challenges using specialized test benches, updated safety protocols, and synchronized measurement platforms.

Evolving test infrastructure

Test benches for multi-voltage EV systems use modular architectures that independently supply, measure, and load each voltage domain. Traction systems operate at 400 or 800 V, while auxiliary and legacy electronics run at 48 and 12 V.

Reliable isolation barriers maintain electrical separation across domains, and distributed sensor networks with isolated data acquisition enable simultaneous high and low-voltage measurements without cross-talk or ground-loop interference.

As shown in Figure 1, hardware-in-the-loop (HIL) and power hardware-in-the-loop (PHIL) techniques emulate bidirectional energy flow and load transients across voltage rails.

Programmable high-voltage dc supplies pair with ac motor-emulation loads, while CAN and automotive Ethernet links mirror real electrical and data conditions. These simulation tools validate domain interactions, fault responses, and transient behavior before physical vehicle testing.

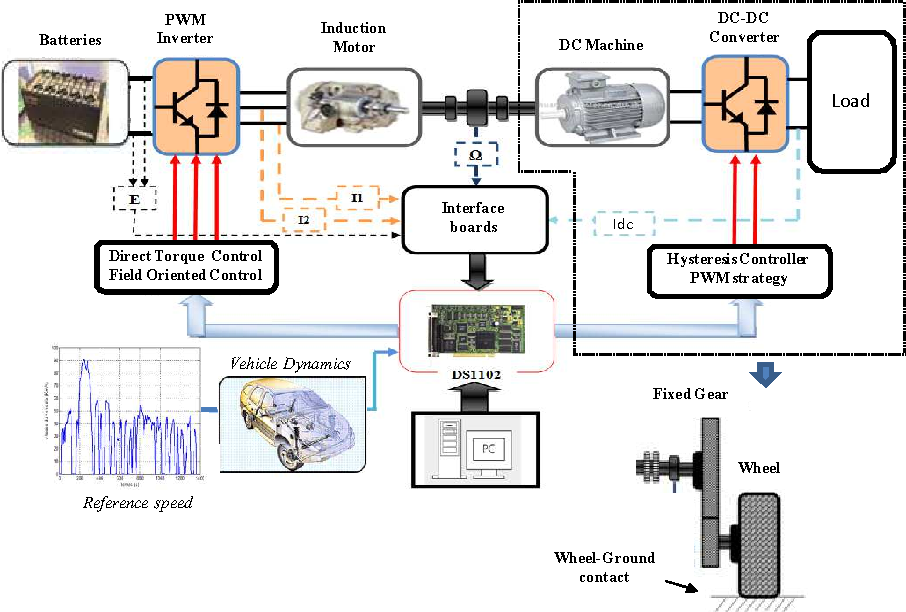

Figure 1. A hardware-in-the-loop test bench emulates bidirectional power flow, motor dynamics, converter behavior, and vehicle-level responses using coordinated inverter control, dc-dc conversion, interface boards, and real-time simulation. (Image: Semantic Scholar/IEEE Xplore)

As the primary high-voltage subsystem, the traction inverter requires test setups that integrate dynamic high-voltage dc supplies, real-time ac load emulation, and synchronized control-data capture to characterize switching behavior, insulation integrity, and conversion efficiency across a range of operating conditions.

These capabilities necessitate comprehensive safety procedures to manage multi-voltage testing risks.

Safety protocols and risk mitigation

Testing multi-voltage EV subsystems requires safety procedures that address the hazards of interacting high- and low-voltage domains. Regulatory thresholds are well defined: 48-V systems meet Safety Extra Low Voltage (SELV) criteria, 60-V dc marks the start of high-voltage classification, and systems at 72 V fall under UL 2271 battery and UL 2272 electrical certification. Platforms at 96 V or higher are subject to full automotive EV standards, such as FMVSS 305a.

All voltage domains must be de-energized and isolated before setup or adjustment. Lockout-tagout procedures maintain safe conditions, and verification uses testers rated for the highest voltage present.

Test environments rely on zone isolation with physical barriers, warning signage, and illuminated indicators that activate when circuits are energized. High-voltage benches operate within interlocked grounded enclosures that shut down automatically if a door opens or an emergency stop is triggered.

Personal protective equipment (PPE) is selected to match the highest voltage and potential fault energy in the system. As shown in Figure 2, technicians use certified insulating gloves, face shields, and flame-resistant clothing rated for arc-flash conditions.

Figure 2. A high-voltage technician uses arc-rated protective gear while working on an EV powertrain to mitigate electrical and thermal hazards. (Image: Uvex)

Instruments meet at least CAT III safety ratings for direct high-voltage measurement, with real-time isolation monitoring, fault-current detection, and automated test sequences limiting operator exposure in hazardous zones. Live high-voltage testing requires two qualified personnel, one conducting the procedure and the other observing and ready to intervene.

With safety controls established, test environments must also manage the signal-integrity demands of multi-voltage measurement.

Ensuring measurement accuracy and SI across voltage domains

Accurate cross-domain testing requires disciplined measurement practices that prevent noise, isolation faults, and timing skew. These include:

  • Galvanically isolated probes and calibrated instruments: High-accuracy voltage and current probes prevent ground loops and electrical noise. Devices undergo frequent calibration using traceable reference standards, with golden samples confirming accuracy throughout development and production testing.
  • EMI mitigation for high-speed switching: Electromagnetic interference (EMI) from silicon carbide (SiC) and gallium nitride (GaN) switching complicates measurements. Shielded cables, disciplined grounding practices, and short wiring runs limit interference. Low-input-capacitance, high-sampling-rate instruments capture fast transients and high-frequency behaviors.
  • Synchronized, multi-channel acquisition: Time-aligned sampling evaluates behavior during transients or faults. Hardware synchronization using IEEE 1588 Precision Time Protocol (PTP), Inter-Range Instrumentation Group (IRIG) timing, or GPS sources aligns samples across channels and modules. Simultaneous-sampling analog-to-digital converter (ADC) architectures eliminate time skew in traction inverter and dc-dc converter measurements.
  • Automated routines and analytics: Automated benches support repeatability and reduce human error. Software analytics flag anomalies, correct drift, and trigger deeper analysis when thresholds are exceeded. Dc-dc converter test routines quantify output regulation and deviation under varying conditions, while revenue-grade metrology maintains accuracy for charging and energy-metering systems.

These validated measurement practices establish a clear link between component behavior and system-level requirements across EV voltage domains.

Standards and system-level compliance

EV subsystems spanning multiple voltage domains undergo system-level validation for functional safety, electromagnetic compatibility, isolation, performance, and environmental resilience. International standards such as ISO 26262 and the IEC 61000 series anchor the compliance framework, while regional requirements like UL and FMVSS introduce market-specific mandates.

Isolation and safety verification assess reinforced insulation and galvanic separation between high- and low-voltage domains. High-voltage dielectric withstand tests and leakage measurements follow IEC 60664 and FMVSS 305 to confirm insulation integrity during normal and fault conditions. Ground-fault detection and insulation-monitoring functions are validated to ensure protective response when isolation degrades.

Functional safety testing under ISO 26262 begins with hazard analysis and Automotive Safety Integrity Level (ASIL) classification. Test plans incorporate fault injection, failure-mode simulation, and redundancy checks. Verification confirms correct subsystem behavior under overcurrent conditions, cross-domain short circuits, and battery-management protection events.

These functional and isolation requirements establish the baseline for broader system-level evaluation, such as electromagnetic compatibility (EMC).

Electromagnetic compatibility and environmental validation

EMC testing measures conducted and radiated emissions and immunity in accordance with IEC 61000 and CISPR standards.

As shown in Figure 3, conducted-emission measurements compare peak and average detector levels with CISPR thresholds under varying operating conditions to verify compliance across ac input, traction, dc-dc, and auxiliary domains. Test configurations simulate interactions throughout these domains to ensure emissions, susceptibility, and coupling remain within defined limits.

Figure 3. Conducted-emission traces at varying torque levels are benchmarked against CISPR Class 5 peak and average limits to verify high-voltage line compliance. (Image: In Compliance Magazine)

System-level performance and environmental testing evaluate inverters, chargers, and dc-dc converters under dynamic loads and cross-domain power-transfer scenarios using HIL platforms and programmable test benches. Environmental cycling introduces mechanical shock, vibration, temperature variation, and humidity to validate performance and isolation stability under harsh operating conditions.

Once system-level behavior is verified, testing transitions to component-level validation within each voltage domain.

Component-level validation

Component-level validation in multi-voltage EV architectures focuses on domain-specific behavior under realistic operating conditions. This includes:

These evaluations confirm that each component performs correctly within its voltage domain and interacts predictably with adjacent domains. They also identify cross-domain issues early in the design cycle, reducing integration risk and improving system reliability.

Summary

Testing EV subsystems across multiple voltage domains relies on specialized infrastructure, disciplined safety practices, and precise, isolated measurement systems. Modular benches provide galvanic isolation, synchronized data acquisition, and HIL capability for controlled evaluation.

Safety protocols follow voltage-specific requirements supported by controlled test zones, certified PPE, and automated monitoring. Component-level validation of traction inverters, dc-dc converters, auxiliary networks, and BMS units confirm reliable behavior across all voltage domains.
