The number of electric cars on the roads is growing significantly. By 2030, more than 100 million electrically powered vehicles are expected to be running worldwide. To make sure drivers can enjoy their electric vehicles (EVs) for as long as possible requires a well-protected battery system.
In normal operation, splash water must be prevented from entering through the gap between the battery cover and housing. This task is handled by a battery housing gasket that can be up to eight meters long, depending on the size of the enclosure. But the seal must do far more than just protect against contamination. If there’s a thermal event in the battery, it also helps contain any flames.
Freudenberg Sealing Technologies has developed various sealing solutions for battery systems. At its Langres, France plant, the number of innovative foldable gaskets produced has just passed the one million mark. The gaskets from this plant are installed by EV manufacturers throughout Europe.
“This number is a great success and an outstanding achievement by the entire local team,” says Marc Nicolas, director of Gaskets at Freudenberg in Langres. “It was also a huge challenge, as the plant in Langres had to be completely redesigned to produce the foldable gaskets and the processes had to be adapted accordingly. All this proceeded smoothly during continuous operations.”
The pilot line has been partially subsidized by the Public Interest Group (GIP) Haute Marne, the European Regional Development Fund (FEDER), and the Grand Est Region.
“In addition, the order quantities, timing and the design of the foldable gaskets changed several times during the ongoing production process,” added Nicolas. “The fact that we were able to deliver impeccable quality despite all this is thanks to a well-functioning, highly motivated team.”
Meeting high standards
By developing the foldable gasket, Freudenberg Sealing Technologies has found a solution that meets customer requirements to the highest degree.

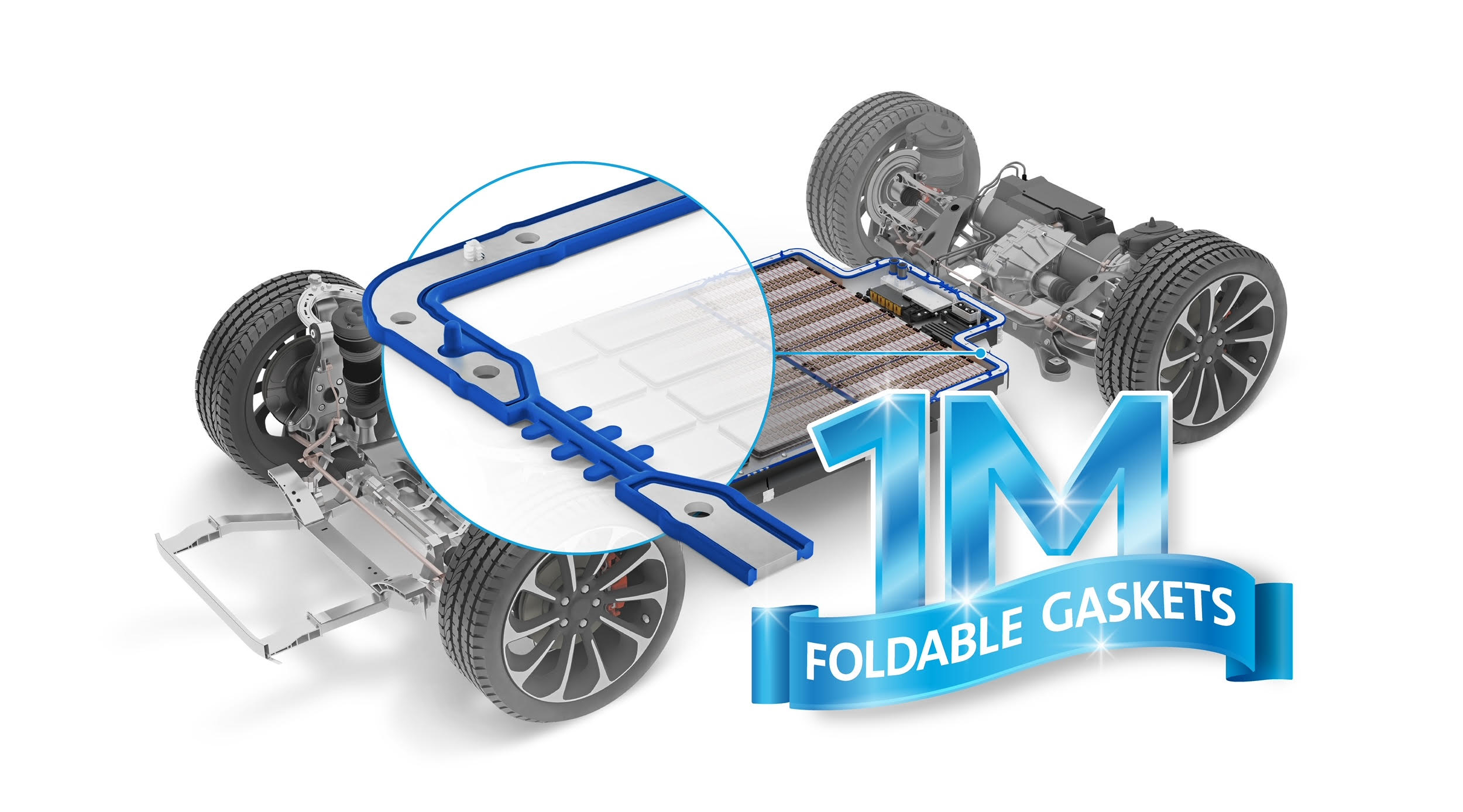

A segmented aluminum carrier with multiple sealing profiles on the outer edge provides strength while also integrating plastic retention fixtures. These are used to attach the gasket quickly and efficiently to the battery housing cover. The carrier segments are interconnected with a continuous sealing profile that is highly flexible. This way it can compensate for small manufacturing tolerances in the housing.
As a result, the foldable gasket helps make the battery system more reliable and durable. Its simple disassembly also makes it easy to service and repair the battery. This benefits the vehicle owners and the environment because instead of having to replace the battery, it can be reused.
The foldable gasket is delivered as a single complete unit that doesn’t have to be assembled from individual elements, which greatly increases the reliability of the installation. Furthermore, battery manufacturers can use fully automated, robotic gasket installation on site.
Another significant advantage of this solution is that the metallic inserts ensure high electrical conductivity between the battery housing and cover. This is important for efficient shielding of the electromagnetic fields generated by the current flow in the battery. Otherwise, these fields could interfere with other electronic components in the car.
“With the foldable gasket technology and the ability of Freudenberg Sealing Technologies to scale the production quickly and robustly, we are showing that this innovative solution plays a key role in ensuring safety and reliability in the fast-growing electro-mobility market,” said Frederic Boyer, head of Marketing Gaskets at Freudenberg. “It’s important that every gasket is developed in close cooperation with our customers. This is the only way for us to meet changing expectations with optimal solutions and be a reliable partner for the industry in the field of modern mobility applications.”
The foldable gaskets made by Freudenberg Sealing Technologies use standard elastomers such as silicones and EPDM that meet safety-related flame resistance standards. Combined with an innovative design, these gaskets meet the strictest sealing requirements according to IPX-9K, IPX-7X standards, as well as other global specifications.
Moreover, these foldable versions are suitable for all combinations of materials used for the battery cover and housings, such as aluminum, steel and composite materials.
