As electric vehicle (EV) platforms evolve toward longer ranges, faster charging, and higher performance, the voltage strategy has become a defining factor in powertrain architecture. Inverter systems are no longer just electrical components; they’re strategic assets shaping efficiency, packaging, and overall system cost.

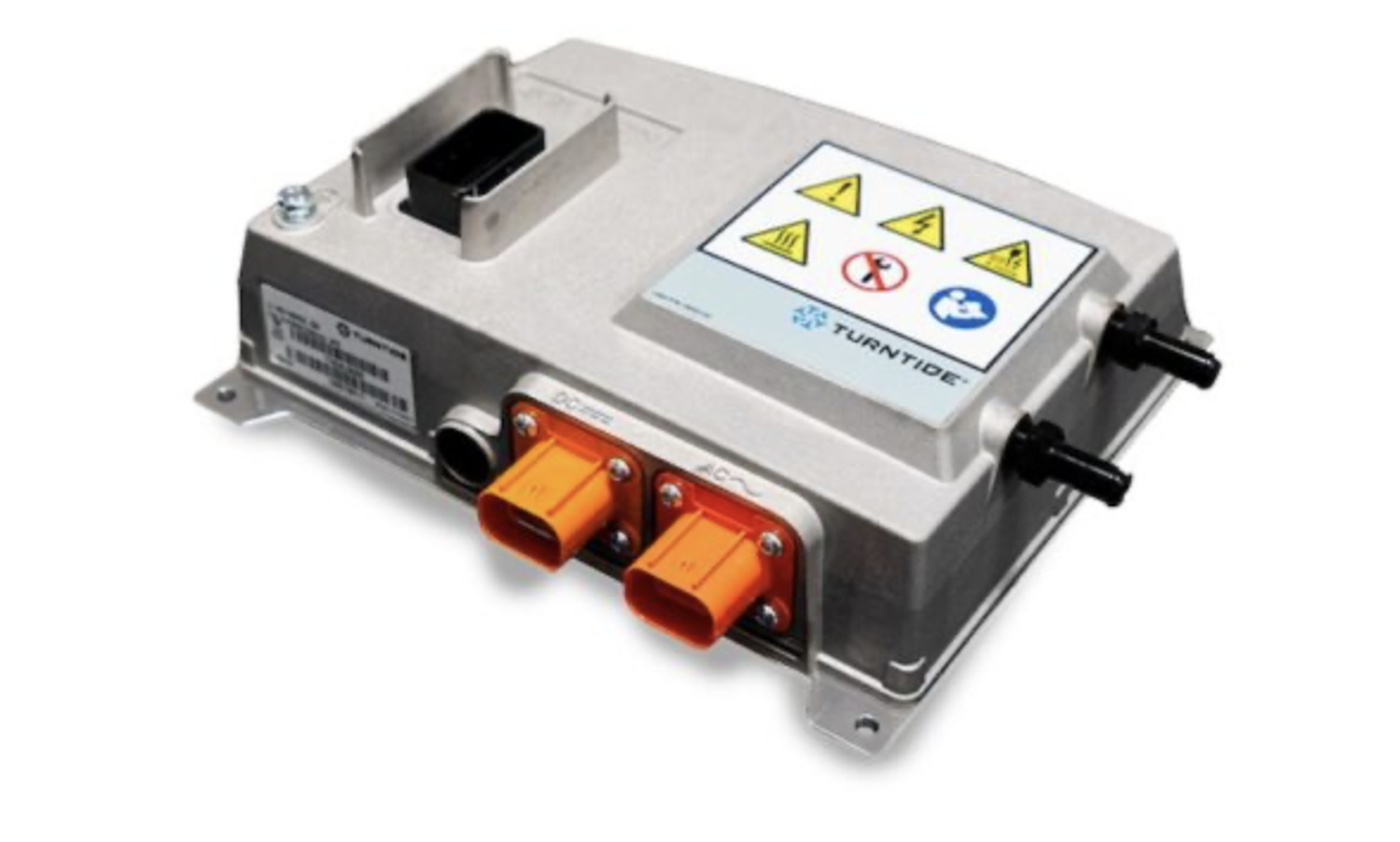

Figure 1. Modern inverter technology enables efficient voltage conversion, reduced losses, and scalable power delivery for electric mobility applications.
This article explores how voltage selection impacts power conversion systems and why high-voltage inverters are key to unlocking the next generation of mobility (Figure 1).
The role of voltage in inverters
In electrified systems, inverters convert direct-current (dc) voltage into alternating-current (ac) voltage and back again, enabling the use of stored or generated energy in a wide range of applications.
The magnitude of this ac output is limited to the system’s dc voltage, making voltage a foundational element of powertrain design.
Fixed dc voltage dictates an inverter system’s power delivery capability and impacts efficiency, thermal management, system size, and reliability.
The basic relationship between voltage (V), current (I), and power (P) is shown in this equation:
P = V x I
Increasing the voltage reduces the current required to deliver the same power (Figure 2). Lower current means lower resistive losses (I²R), enabling more efficient, compact, and cooler-running systems.
Figure 2. How inverters manage voltage conversion in grid-fed and battery-powered EV systems.
High-voltage systems in electrified platforms
Increasing system voltage reduces current, which lowers I²R losses and the resistive heating that can limit efficiency and thermal performance.
The key benefits of high-voltage EV architectures include:
- Reduced size and weight. Lower current requirements enable the use of smaller power conductors, reducing vehicle weight and freeing up space for thermal components and additional features. This gives system designers greater flexibility in layout and packaging.
- Higher efficiency and extended range. Lower I²R losses directly translate to increased vehicle range per kilowatt-hour of battery capacity. This supports OEM efficiency targets and regulatory compliance.
- Lower thermal load. Reduced current generation equates to lower heat production in inverters, motors, and cabling. This simplifies thermal management systems and decreases the components’ thermal stress. It also improves inverter efficiency, reduces cooling requirements, and enhances long-term system reliability. (Figure 3)
- Access to advanced power electronics. High voltage systems allow designers to capitalize on breakthrough technologies, such as wide bandgap power electronics. These materials enable higher switching frequencies and significantly reduce energy losses, leading to more compact, efficient, and thermally manageable power systems.
Figure 3. Exploded view of an axial flux motor: scalable stators, advanced cooling, and composite rotors all benefit from high-voltage EV architectures that reduce current and thermal stress.
Total cost of ownership
The comparison of lifetime electric system costs with their combustion power alternatives is the primary metric affecting the shift toward electrification.
Subsidies related to carbon emissions can skew total cost of ownership (TCO) comparisons and should be considered separately. The choice of voltage has a significant impact on TCO and is, in any commercial mobility electrification project, the primary measure of success.
Some measures include:
- Improved system efficiency increases range and runtime for a given capacity, enhancing the return on investment.
- Reduced battery capacity (affecting cost) for a given range helps offset some overall costs for the exact specification at a lower voltage.
- Reduced charging times increase equipment availability.
Design trade-offs and challenges
Transitioning to higher voltage presents several engineering challenges, including:
- Safety: Higher voltages require more rigorous insulation and protection standards, particularly in rugged environments such as construction and agriculture.
- Training and servicing: Higher voltage systems may require specialized training programs and handling equipment.
- Electromagnetic compatibility: Higher voltage power electronics are more likely to require significant electromagnetic interference mitigation strategies.
- Bearing wear: With increased voltage comes greater influence from parasitic currents in isolated elements, which can lead to premature bearing failure when compared to lower voltage equivalent systems.
- Component cost: High-voltage-rated semiconductors, connectors, and insulation materials may be more expensive.
- Charging infrastructure compatibility: The choice of battery voltage impacts the design of the charging infrastructure since chargers must match the voltage requirements of the system.
A voltage strategy
While automotive OEMs are increasingly adopting 800-volt systems, similar voltage considerations apply in the off-highway, marine, and industrial sectors.
These environments benefit from the same principles: lower current, improved thermal management, and higher system efficiency. In high-demand applications like electric rail, construction equipment, and material handling, voltage choice influences everything from component reliability to infrastructure compatibility.
Choosing the ideal voltage architecture depends on factors such as duty cycle, operating environment, load profile, and system scalability. Whether it’s reducing fuel use in hybrid agricultural vehicles or improving cycle time in electric construction equipment, voltage is a foundational design factor.
Conclusion
For electrification engineers, voltage is more than just a number on a spec sheet. It is a strategic enabler. As the demand for electrification continues to grow across mobility, energy, and industry, voltage strategy is central to achieving performance, efficiency, and sustainability.
Understanding the trade-offs and opportunities of voltage choice is essential for engineering the future of electrified mobility, on and off the road.
