How to choose an e-bike controller

The motor controller is one of the most critical components of an electric bicycle, also known as an e-bike. It’s an electronic device that manages the operation of an electric motor. It also connects to all other major parts of an e-bike, including the battery, brakes, sensors, throttle, and motor.

Essentially, the motor controller acts like the brain of the e-bike, controlling the functions of the e-bike’s electrical components. This is why it’s critical to select the ideal motor controller for the application. In this article, we’ll discuss the key specifications of an e-bike motor controller and how to select the right one.

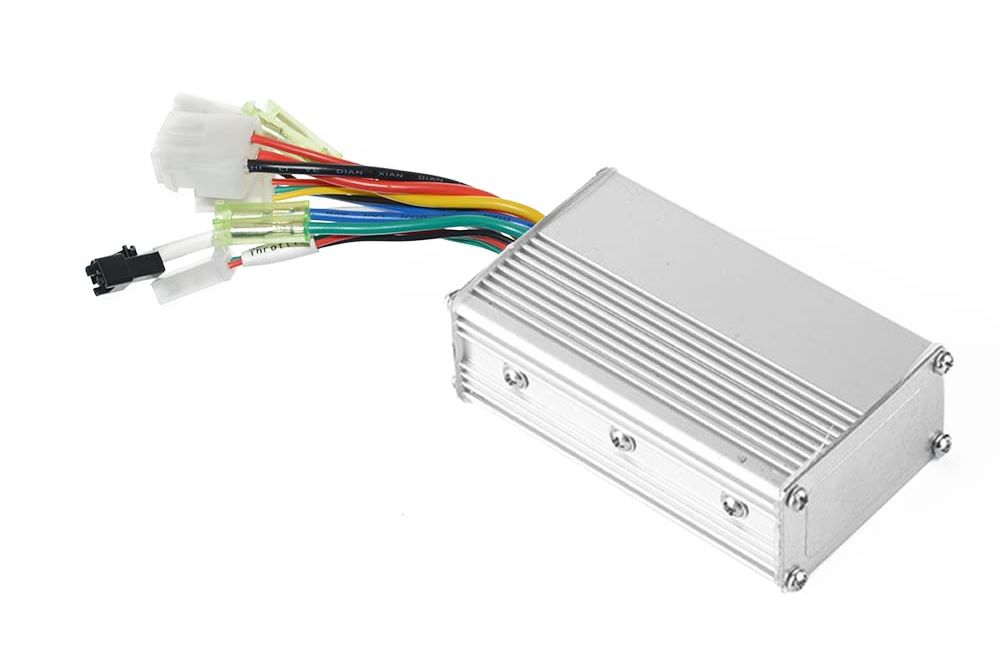

The e-bike motor controller

An e-bike motor controller (also called an electric speed controller) is responsible for managing the critical functions of the bike. It acts as a central hub, which connects the battery, motor, throttle, display, pedal-assist system, sensors, and other electrical components.

The motor controller determines the e-bike’s speed by receiving signals from the throttle or pedal-assist system and controlling the power supplied to the motor. It can also ensure safety by limiting the maximum speed of the e-bike and applying a motor cut-off when the brakes are pressed.

And that’s not all. The motor controller also manages additional features like regenerative braking, communication interfaces, display management, and others. The controller is enclosed in a sealed protective case and can be mounted as is or secured within the bike’s frame, depending on the e-bike’s design.

The role of the motor controller

The motor controller is responsible for managing several critical functions of an e-bike. It receives input from one electrical component of the bike and, based on that input, determines what to return to another component. In this manner, it controls the overall functioning of the e-bike.

The functions an e-bike’s motor controller manages are as follows:

• Power regulation accounts for a rider’s input and the chosen level of assistance when determining how much electrical power to give the electric motor. This ensures the motor receives the ideal amount of power for various riding scenarios and degrees of assistance.
• Over-voltage and low-voltage protection continuously monitor the battery voltage, protecting the motor from low and over-voltage. It immediately shuts down the motor if the voltage reaches full charge or drops below a set threshold.
• Speed control controls the e-bike’s speed by interpreting signals from pedal-assist sensors, throttle, or other speed sensors. It maintains a consistent bike speed based on a rider’s input and her chosen assistance level.
• Direction control manages the direction of the electric motor, allowing the e-bike to move forward or backward.
• Battery management monitors the battery’s charge level, guarding against situations that can shorten its life, such as deep discharging or overcharging. The controller optimizes energy efficiency by managing the power flow to and from the battery.
• Over-current protection lowers the current flow to the motor if it draws more energy. The controller protects the field-effect transistor (FET) and the motor windings.
• Sensor integration connects with various sensors on the e-bike, such as the pedal, speed, and torque sensors. To provide a smooth and responsive riding experience, it evaluates sensor data and adjusts the motor’s performance in real-time.
• The user interface manages an e-bike’s user interface, where riders can adjust settings and store data (like speed, battery life, and distance traveled).
• Communication interfaces manage communication interfaces, such as USB or Bluetooth, for firmware updates, customization, and integration with external devices or applications.
• Thermal management monitors the motor’s temperature to prevent overheating. It implements thermal protection measures, such as reducing power output should the temperature become too high.
• Fault detection and protection occur when the motor controller recognizes and reacts to malfunctions or defects in the system, implementing safety measures to safeguard the motor, controller, or other components of the e-bike from faults or damage.
• Regenerative braking occurs when the electric motor functions as a generator during braking, transforming kinetic energy into electrical energy, which is subsequently redirected to the battery.

Types of e-bike motor controllers

There are several types of e-bike controllers, depending on the bike and its motor and other features (such as regenerative braking).

Here are a few of the available motor controllers for e-bikes:

• Pedal-assist (PAS) controllers assist with pedal sensors based on a rider’s pedaling input. Riders may select from various levels, depending on the type of support they prefer while riding.
• Throttle-based controllers allow riders to directly regulate an e-bike’s motor power and speed by hand-tightening a throttle that resembles a motorcycle’s throttle. This provides a more direct control method, allowing users to adjust the bike’s speed without pedaling.
• Combined PAS and throttle controllers — some e-bike systems come with throttle and pedal-assist controls, giving riders a choice of how they’d like to operate the e-bike.
• Torque sensor controllers calculate the force delivered to the pedals and offer assistance based on a rider’s exertion. By modifying assistance levels in response to the rider’s pedaling efforts, torque sensor controllers provide a more responsive and natural riding experience.
• Mid-drive controllers are mounted in the middle of an e-bike’s bottom bracket and distribute power effectively. They can handle various terrains while maintaining balance.
• Hub motor controllers are designed for e-bikes equipped with hub motors integrated into the wheel (front or rear). They regulate the bike’s torque, speed, and power supply to the hub motor.

Considerations based on the e-bike’s motor

Brushed dc motor controllers have a connection and permanent magnets. They require a set of keys to alter the current going to the engine and are easy to operate. Most e-mobility options use brushed motor controllers, such as pedelecs, e-bikes, scooters, electric bicycles, and other light EVs.

Brushless dc motor controllers or BLDC motors are most commonly used in e-bikes. These motors are permanent magnet brushless designs. Typically, they’re reliable, efficient, and easy to operate and service. There are phases controlled by a set of keys, comprising six in total.

At least two transistors (key/MOSFET) are included per phase in brushless controllers. Some BLDC controllers also come with hall sensors, which provide feedback on the rotor’s position to control the commutation sequence. A BLDC motor relies on the precise timing of current pulses in the motor windings to generate continuous rotation. The hall sensors help determine when to switch the current in the motor windings.

Additional types of motor controllers

• High-torque controllers produce higher torque and are ideal for applications that require more power, such as freight or off-road e-bikes.
• Smart controllers: Bluetooth and Wi-Fi connectivity are examples of built-in connectivity options that come in smart controllers. They enable users to link with a smartphone app for monitoring, customization, and more functions.
• Firmware-programmable controllers would allow users to customize performance factors, such as acceleration and peak speed, by updating the firmware.
• Regenerative braking controllers convert kinetic energy into electrical energy during braking, enhancing energy efficiency and extending battery life.

Specifications

These are the essential technical specifications of an e-bike motor controller:

• The voltage rating indicates the voltage range that the controller can handle. It must match the voltage of the e-bike battery.
• The current rating indicates the maximum current that the controller can handle. It’s crucial for determining the power output and compatibility with the e-bike motor.
• Power rating is determined by multiplying the voltage and current ratings. It represents the maximum power the controller can deliver to the motor.
• The type of motor indicates the type of motor the controller is designed for (i.e., for a BLDC or brushed dc motor).
• Operating modes indicate the available operating modes, such as pedal-assist, throttle-only, or a combination of both.
• The control method refers to the control strategy the controller employs, such as pulse width modulation (PWM), Field-oriented control (FOC), or other control algorithms.
• Efficiency specifies the controller’s efficiency (i.e., how well it converts electrical power from the battery into mechanical energy at the motor).
• Temperature range is the operating temperature range within which the controller can function correctly.
• Size and weight are the physical dimensions, and the weight of the controller is crucial for its integration into the e-bike frame.
• Certifications indicate whether the controller complies with industry standards or certifications, ensuring its safety and performance.
• Protection features, including over-temperature protection, over-current protection, and short-circuit protection, are crucial for ensuring the safety and durability of the controller.
• Regenerative braking indicates whether the controller supports regenerative braking, allowing the motor to act as a generator during braking to recharge the battery.
• Communication interfaces specify any communication interfaces, such as Bluetooth or USB, that enable firmware updates, customization, or connectivity with external devices.
• The user interface is how the rider interacts with the controller, whether through a display, buttons, or a smartphone app.
• Pedal-assist sensor compatibility — It should indicate compatibility with various pedal sensors, including cadence and torque sensors.
• Throttle type indicates the type of throttle the controller supports, including twist grip, thumb throttle, or other variations.

How to choose an e-bike motor controller

The first consideration when selecting an e-bike motor controller is its voltage and current rating. The voltage rating must match the motor voltage. The controller’s power rating is calculated by multiplying the voltage rating by the current rating. The power rating should be slightly higher than the motor power.

If the controller is programmable, the controller’s voltage should match both the motor and the battery. The power can be limited in programmable controllers.

The current rating of the controller is its maximum phase current, which should be less than the battery’s output current. So, you’ll need to see the maximum current rating of the motor controller. Generally, 15-MOSFET controllers are 40A rated, 9-MOSFET controllers are 25A rated, and 6-MOSFET controllers are 18A rated.

The motor will heat up more and more if the controller delivers more current than it can handle. The varnish coating on the wires deteriorates as the motor overheats. It causes a short circuit, which causes the motor to overheat quickly and damage the windings.

Next, check whether the controller’s driving type is square or sine-wave type. Sine waves have lower noise, which increases efficiency when traveling uphill or carrying heavy objects on a bike. These controllers offer more consistent and seamless management of overall operations. However, sine waves are more costly and require more power. They’re also limited to using matching motors for operation.

Square wave controllers are more affordable and can be used with various motors. They’re efficient in acceleration and braking but generate more noise and have somewhat punchy or unbalanced control. They’re also not as efficient or smooth at uphill travel or with too much-added weight on the e-bike.

Hall sensor also makes a significant difference when used with BLDC motor controllers. These controllers offer a dual-mode on e-bikes. The motor’s hall sensor detects rotation, and the controller produces a voltage in response to sensor inputs. With more torque on acceleration and less power consumption, this motor controller is typically more reliable.

Apart from the electrical specifications, the size and weight of the motor controller are important considerations and should match the e-bike’s design. Additionally, when selecting a motor controller, features such as regenerative braking, over-temperature protection, over-current protection, and short-circuit protection should also be taken into consideration.

Other controller considerations include the user interface options, communication interfaces, throttle type, and compatibility with pedal sensors. The type of motor supported by the controller, current-voltage rating, size, and weight of the controller, as well as additional features, are usually proportional to the cost. So, a motor controller within the desired budget with optimum features must be selected.

Conclusion

An e-bike’s motor controller is its most crucial component. Motor controllers are available in several types and configurations and should match the e-bike’s design, motor, battery, voltage-current rating, driving type, and operating modes.

---
