As electric vehicles (EVs) become more widespread, drivetrain configuration significantly impacts range and efficiency. This article examines the impact of single-speed and multi-speed gearboxes on EV range performance. We will examine the benefits and drawbacks of adopting dual-motor design and sophisticated drivetrain technology.
How does load differ between electric and ICE systems?
Unlike ICEs that benefit from downsizing strategies, electric motors benefit from “upsizing” approaches that change drivetrain optimization. While ICE powertrains achieve only 12 to 20% fuel-to-wheel conversion efficiency, electric motors consistently deliver 85%+ efficiency across broad operating ranges.
The key difference lies in load characteristics. Electric motors operate efficiently at partial loads around 30%, contrasting sharply with ICEs that require 70% load for optimal efficiency. This efficiency advantage creates opportunities for range optimization, with modern drivetrain configurations delivering improvements in range of four to 11% through motor load management and power distribution.
Understanding these efficiency characteristics becomes important as the industry transitions from simple single-motor architectures toward multi-motor, multi-speed systems that maximize electric propulsion capabilities.
Why don’t single-speed systems optimize motor efficiency?
Single-speed systems dominate current EV architectures due to their simplicity, lower manufacturing costs, and higher mechanical efficiency through direct power transfer. However, this simplicity forces electric motors to operate outside their optimal efficiency zones across varying speed ranges, creating range optimization opportunities.
Figure 1 illustrates the mechanical evolution from single-speed to multi-speed architectures, revealing trade-offs in EV transmission design. Configuration (a) shows the simplicity of single-speed systems with direct power transfer and minimal mechanical complexity.
Figure 1. Evolution of EV transmission architectures showing (a) single-speed direct drive, (b) two-speed, (c) three-speed, and (d) four-speed configurations with increasing mechanical complexity through additional clutches and gear sets. (Image: Sage Journals)
As we progress through (b) two-speed, (c) three-speed, and (d) four-speed systems, the addition of clutches and gear sets enables optimal motor operation across wider speed ranges. But it comes at the cost of increased mechanical complexity and potential failure points. The clutch arrangements visible in configurations (b-d) enable smooth gear transitions while maintaining power delivery, which is important for smooth EV operation.
Multi-speed transmissions deliver documented range improvements by maintaining electric motors within their 90%+ efficiency zones. But just how much improvement are we talking about?
Research shows that two-speed systems achieve 7.3 to 11.3% energy consumption reductions, while three-speed configurations show 9.3% energy savings compared to single-speed alternatives.
Table 1 provides quantified evidence that multi-speed benefits vary significantly by application. Zhou et al.’s NEDC testing showed a 4.2% range improvement with dual-speed configurations (131.83 km vs. 126.55 km baseline).
Table 1. Comparative range performance of single-speed vs. multi-speed EV transmissions across different driving cycles. (Image: ResearchGate)
Here’s what’s really interesting. Walker et al.’s city cycle testing actually achieved 8.5% range increases using two-speed systems (191 km vs. 176 km baseline), while highway results proved more variable.
The data reveals that three-speed systems (189 km) actually performed slightly worse than two-speed configurations (191 km) in city driving, demonstrating diminishing returns that must be balanced against added complexity, weight, and costs.
What’s driving the rapid adoption of dual-motor configurations?
Dual-motor configurations are gaining increased market adoption by offering superior acceleration and improved traction while delivering an optimal performance-cost-efficiency balance compared to four-motor complexity. This positioning explains why major OEMs from Tesla to Rivian are prioritizing dual-motor architectures across their product portfolios.
Three primary dual-motor architectures dominate current development efforts. Direct gear coupling provides mechanical simplicity and lower costs but limits available gear ratios. Planetary gear coupling enables enhanced torque vectoring and versatile gear ratios with moderate complexity. Front-and-rear drive configurations provide the best traction and stability by utilizing independent motor control, although this setup comes with a very high level of control difficulty.
Table 2 reveals why different OEMs choose different approaches based on their priorities. Why would leading manufacturers choose the most difficult control approach?

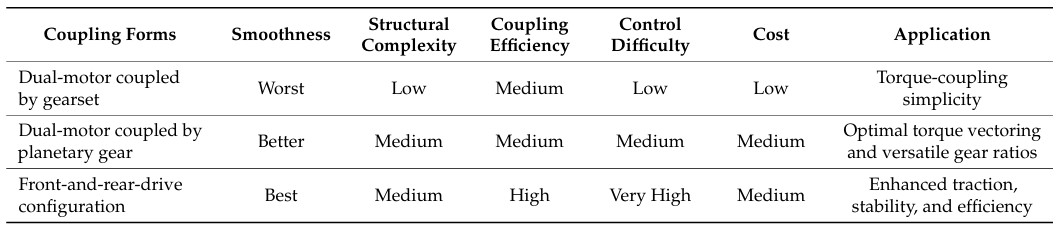

Table 2. Dual-motor configuration comparison showing trade-offs between performance and complexity. (Image: MDPI)
Tesla and Audi prioritize front-and-rear configurations despite “Very High” control difficulty because they deliver “Best” smoothness and “High” coupling efficiency for premium performance applications. This explains market success stories.
The Tesla Model S achieves 2.1-second 0-100 km/h acceleration with a 600 km range, while the Audi e-tron Quattro delivers a 349-mile range with 5.4-second acceleration times.
Now, here’s the surprising part. Well-designed AWD systems can actually be more efficient than 2WD. Figure 2 shows that well-designed complementary eAWD systems actually exceed 2WD efficiency by two to three percent. The efficiency progression from left (2WD baseline) to right (advanced AWD) shows how decoupling systems and complementary motor strategies achieve efficiency gains alongside performance benefits.
Table 2. Dual-motor configuration comparison showing trade-offs between performance and complexity. (Image: MDPI)
What options exist beyond conventional multi-speed systems?
Beyond conventional multi-speed systems, advanced drivetrain architectures offer approaches to optimizing EV range through power delivery mechanisms. Dual-clutch transmission systems achieve approximately 90% powertrain efficiency with smooth shifting capabilities, eliminating traditional clutch plates and synchronizers that create power interruptions during gear changes.
Automated Manual Transmission (AMT) systems demonstrate that two-speed configurations provide optimal cost-benefit ratios for many applications, while three-plus speed systems show diminishing returns due to increased transmission losses. However, inverse-AMT designs offer 50% traction loss compensation during gear shifts, which is important for maintaining efficiency during variable driving conditions.
What if there were a transmission that never actually shifted gears at all? Continuously Variable Transmission (CVT) technology presents trade-offs for EV applications.
While CVT systems provide infinite speed ratios, enabling theoretically ideal motor operation across all conditions, their friction-based power transfer mechanisms result in lower mechanical efficiency compared to gear-based alternatives. This makes CVT suitable for applications prioritizing smooth operation over peak efficiency.
Summary and industry outlook
Compared to ICEs, EV drivetrain configurations alter range optimization strategies, resulting in measurable range improvements through multi-speed transmissions and well-designed dual-motor AWD systems. The industry is clearly moving towards using front-and-rear dual-motor setups, even though they are harder to control, because they provide better smoothness and efficiency for high-end vehicles.
Looking forward, multi-speed transmissions are becoming viable for mainstream EVs as manufacturing costs decrease and control algorithms mature. So, if the benefits are so clear, what’s holding back widespread adoption?
The industry’s challenge remains balancing performance gains against complexity and cost, but the range benefits validate continued investment in advanced drivetrain architectures as important for maximizing EV potential.
References
- Development of continuously variable transmission and multi-speed dual-clutch transmission for pure electric vehicle, Advances in Mechanical Engineering, Sage Journals
- Electric Vehicle with Multi-Speed Transmission: A Review on Performances and Complexities, ResearchGate
- Dual-Motor Dual-Source High Performance EV: A Comprehensive Review, Energies, MDPI
- Increasing BEV Performance without Compromising Efficiency, CTI Symposium
